CML Innovative Technologies 1199 Signaling Lamp

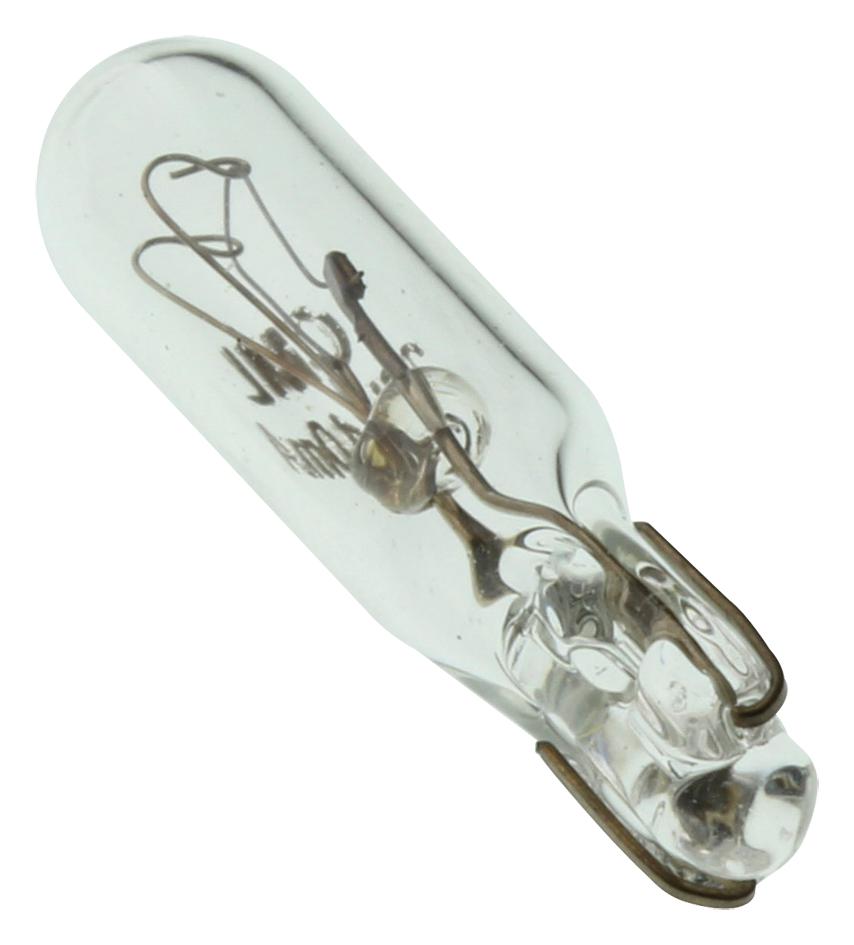

The 1199LF is a lead-free wedge base lamp designed for signaling applications. It operates at 28V with a current of 40mA and delivers a light output of 3.8 lumens. This incandescent lamp is built for durability, with an estimated lifespan of 10,000 hours, ensuring long-term performance in lighting and signaling systems. Its compact form factor and reliable electrical characteristics make it ideal for various industrial and electronic signaling applications requiring consistent illumination and robust operation over extended periods.
CML Innovative Technologies 1199 Signaling Lamp Specifications:
- Base Type: T-14 (5mm) lead-free wedge base
- Voltage: 28V
- Current: 40mA (nominal), 36mA min, 44mA max
- Light Output: 3.8 lumens (nominal), 2.9 min, 4.7 max
- Lifespan: 10,000 hours
- Dimensions: Length approximately 15.2mm, diameter 5mm
- Operating Temperature Range: Not specified
- Material: Incandescent tungsten filament with lead-free construction
- Application: Signaling, indicator lights, electronic signaling devices
- Certification: Not specified
- Performance: Reliable light output at 28V for signaling applications
Buy the Generic Series Signaling Lamp: 1199
Order the 1199LF lead-free wedge base signaling lamp online today and enjoy quick delivery. This durable incandescent lamp offers 10,000 hours of reliable operation at 28V with 40mA current, producing 3.8 lumens for effective signaling. Its compact size makes it versatile for electronic and industrial signaling applications. Designed with environmentally friendly lead-free materials, it ensures compliance with modern safety standards. Enhance your signaling system with this high-performance, long-lasting lamp—available for purchase now with easy online ordering.
Buy 1199LF lead-free wedge base signaling lamp now and experience reliable long-lasting performance for industrial and electronic signaling needs.
