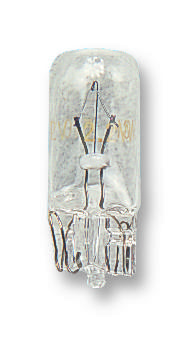

CML Innovative Technologies 505 Incandescent T10 Lamp
The incandescent T10 24V 3W wedge base lamp by CM Innovative Technologies offers reliable performance for lighting applications requiring 24 volts and 3 watts. It features a T-3% filament shape, clear gloss finish, and is compliant with RoHS and REACH standards. The bulb is designed with a retention groove, lead wires extending approximately 20.3 mm, and dimensions of 12.7 mm diameter with a length of 41.5 mm. Suitable for various illumination needs, this lamp provides a luminous output ranging from 15.4 to 28.6 lumens and a lifespan of up to 1000 hours.
CML Innovative Technologies 505 Incandescent T10 Lamp Specifications:
- Type: Incandescent T10 24V 3W
- Base Type: Wedge
- Filament Shape: T-3%
- Dimensions: Diameter 12.7 mm, Length 41.5 mm
- Lead Wires Length: Approximately 20.3 mm
- Exhaust tip to clear hole: 3.05 mm diameter
- Filament Current: 122-164mA
- Light Output: 15.4-28.6 lumens
- Lifespan: Up to 1000 hours
- Material: Clear gloss, properly annealed glass
- Standards: RoHS, REACH SVHC compliant
- Operating Voltage: 24V
- Power: 3W
- Compliance: IEC 61-1, BS EN 60061-1
- Marking: VCH 22A 24V W3W
- Color: White or clear bead
- Certifications: RoHS, REACH
- Environmental Standards: SVHC compliant
Buy the Buy CM Innovative Technologies Part Number 505 Online
Get your CM Innovative Technologies Incandescent T10 24V 3W wedge base lamp online today. Designed with a T-3% filament, it offers dependable illumination, 1000-hour lifespan, and meets RoHS and REACH standards. Compact with dimensions of 12.7 mm diameter and 41.5 mm length, it provides luminous output from 15.4 to 28.6 lumens. Ensure optimal performance for your lighting setups by ordering this high-quality bulb easily online—perfect for various industrial, commercial, or decorative lighting applications.
Order your CM Innovative Technologies 505 incandescent bulb today and ensure reliable, efficient lighting for your electronic or lighting projects.
