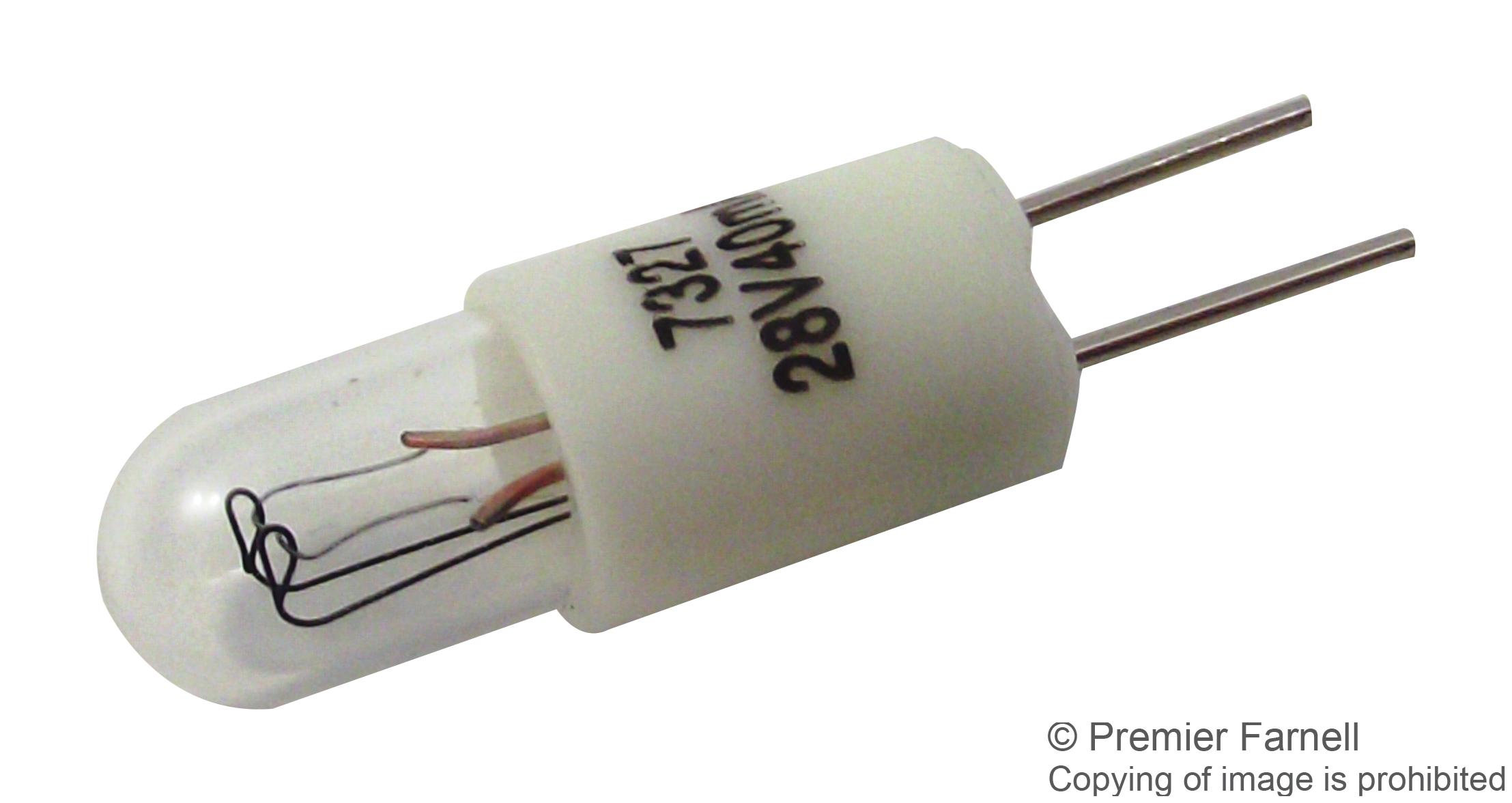

CML Innovative Technologies 7327 Incandescent Lamp
The 7327 is a high-quality incandescent lamp with a bi-pin white nylon base and C-2F filament. Designed to operate at 28V and 40mA, it delivers around 4.3 lumens of light output, ideal for lighting and avionics applications. With a maximum length of 26.0 mm and dimensions including a diameter of approximately 8.25 mm, this reliable lamp ensures consistent performance over an estimated lifespan of 7,000 hours. Certified as RoHS and REACH SVHC compliant, it offers durability and environmental safety for various electronic systems.
CML Innovative Technologies 7327 Incandescent Lamp Specifications:
- Operating Voltage: 28V (nominal), Min 26V, Max 36V
- Current: 40mA (nominal), Min 36mA, Max 44mA
- Light Output: Approximately 4.3 Lumens
- Lifespan: About 7,000 hours
- Base Type: White nylon bi-pin
- Filament Shape: C-2F
- Maximum Length: 26.0 mm
- Diameter: Approximately 8.25 mm
- Environmental Compliance: RoHS & REACH SVHC compliant
- Marking: 7327 28V 40mA ink-stamped on the base
Buy the CML Innovative Technologies Series Incandescent Lamp: 7327
Purchase your CML Innovative Technologies Series 7327 incandescent lamp online today for dependable performance in lighting and avionics. Designed with a white nylon bi-pin base and a C-2F filament, this lamp operates at 28V and 40mA, producing approximately 4.3 lumens of brightness. It offers a lifespan of about 7,000 hours, RoHS and REACH compliance, and compact dimensions of 26.0 mm length and 8.25 mm diameter. Suitable for various electronic and lighting applications, it guarantees durability and consistent operation in demanding environments.
Order your CML Innovative Technologies Series 7327 incandescent lamp today and ensure bright, reliable lighting for your avionics and electronic projects.
Frequently Asked Questions
Where can I buy CML Innovative Technologies 7327?
You can click on the BUY or RFQ button to purchase 7327 from an authorized CML Innovative Technologies distributor.
How do I troubleshoot issues or seek technical support for part 7327?
You can download the 7327 datasheet or visit the CML Innovative Technologies website for support.
Who is the manufacturer of 7327?
CML Innovative Technologies
