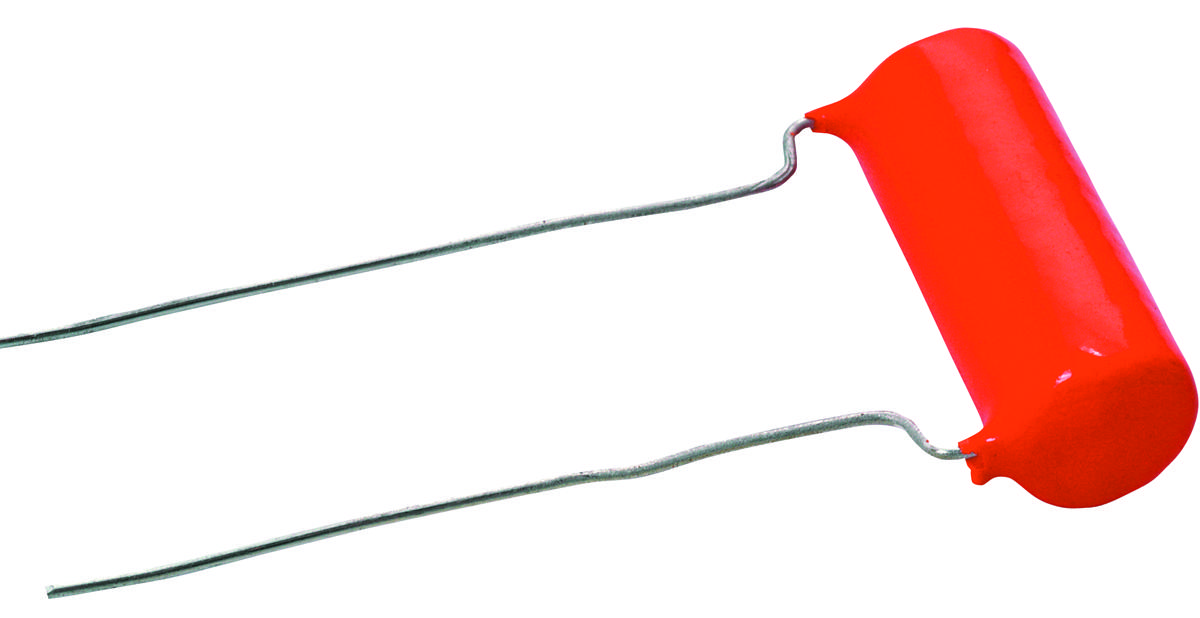

CORNELL DUBILIER 225P33391WD3 Polyester Film Capacitor
The Type 225P Orange Drop polyester film and foil capacitors are reliable component solutions designed for a wide range of demanding industrial and electronic applications. Featuring non-inductively wound construction with extended aluminum foil and a rugged orange epoxy conformal coating, they offer excellent dependability, high voltage ratings up to 600V DC, and operating temperatures up to +125°C with proper derating. Suitable for power supplies, instrumentation, audio amplifiers, and test equipment, these capacitors combine proven durability with extensive availability through CDE distribution, ensuring dependable performance in challenging environments.
CORNELL DUBILIER 225P33391WD3 Polyester Film Capacitor Specifications:
- Capacitance Range: .00 to 1.0 uF
- Capacitance Tolerance: +5%, +10%, +20%
- Voltage Ratings: 100 to 600 Volts DC
- Operating Temperature Range: -55°C to +125°C with derating
- Voltage Derating: At +105°C, 70%; at +125°C, 50% of +85°C rating
- Lead Wire: Tinned copper-clad steel, 0.8 mm diameter, #20 AWG
- Insulation Resistance: 100,000 MΩ at +25°C for <0.25 pF, 25,000 MΩ/uF for >0.25 uF
- Temperature Resistance: Up to +125°C with derating
- Dissipation Factor: 0.75% Max @ 1 KHz, +25°C
- Encapsulation: Conformal orange flame-retardant epoxy, UL94V-0
- Dielectric Material: Polyester film with non-inductive winding and extended aluminum foil
- RoHS Compliance
Buy the CDE 225P – Reliable Polyester Film Capacitors for Industrial Applications
Secure your electronic projects with the high-quality CDE 225P polyester film capacitor, designed for demanding industrial power supplies, instrumentation, and audio equipment. Featuring high voltage ratings up to 600V DC, extended temperature tolerance up to +125°C, and robust orange epoxy encapsulation, these capacitors ensure durability and dependable operation. Available through extensive distribution channels, they are easy to integrate into various applications. Enhance your system’s reliability by ordering online today and benefit from proven dependability and quick delivery, supporting your manufacturing and maintenance needs efficiently.
Order your CDE Series 225P polyester film capacitor today and ensure reliable performance in operational environments demanding high voltage and durability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 225P33391WD3?
You can click on the BUY or RFQ button to purchase 225P33391WD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 225P33391WD3?
You can download the 225P33391WD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 225P33391WD3?
CORNELL DUBILIER
