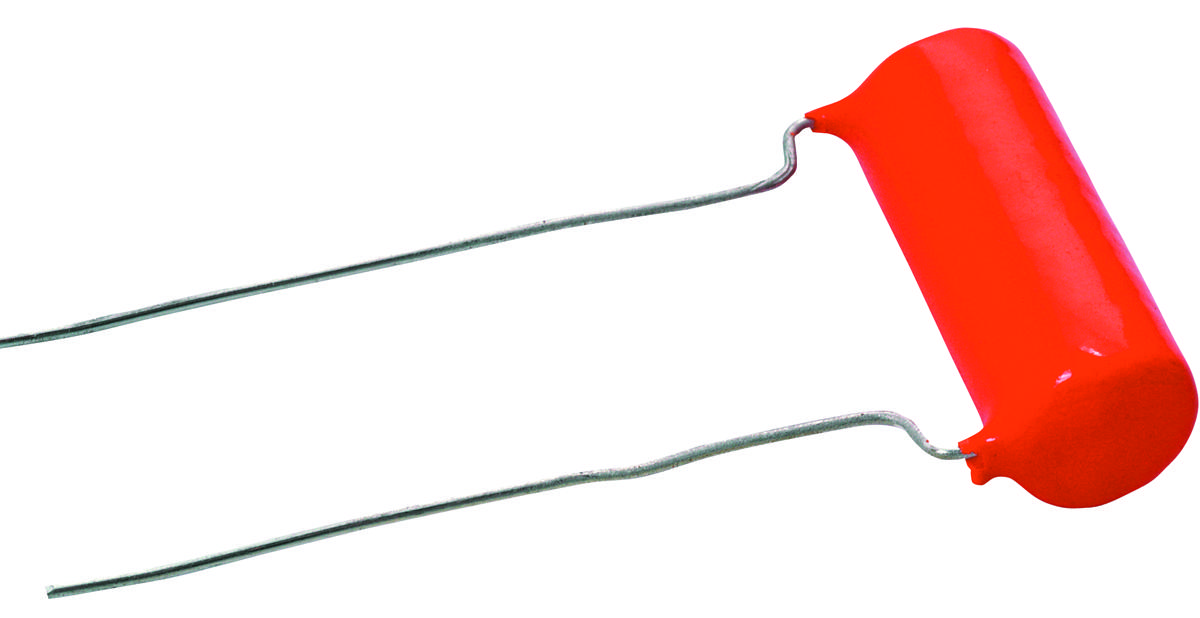

CORNELL DUBILIER 225P47291WD3 Polyester Capacitor
The Type 225P Orange Drop polyester film and foil capacitor offers reliable performance in demanding environments, featuring non-inductively wound construction, extended aluminum foil, and conformal flame-retardant epoxy coating. Operable up to +125°C with proper derating, it is ideal for power supplies, instrumentation, audio amplifiers, and test equipment. Proven for over 35 years, these capacitors ensure durability and dependability in industrial and commercial electronic applications, with wide availability through CDE distribution channels.
CORNELL DUBILIER 225P47291WD3 Polyester Capacitor Specifications:
- Capacitance Range: 0.00 to 1.0 uF
- Capacitance Tolerance: +5%, +10%, +20%
- Voltage Ratings: 100 to 600 Volts DC
- Operating Temperature Range: -55°C to +125°C with derating
- Lead Wire: Tinned copper-clad steel, 0.8 mm diameter, #20 AWG
- Insulation Resistance: 100,000 MΩ at +25°C for C < 0.25 uF; 25,000 MΩ-uF for C > 0.25 uF; reduces at higher temperatures
- Dissipation Factor: 0.75% maximum at 1 KHz, +25°C
- Encapsulation: Orange, flame-retardant epoxy conformal coating, meets UL94V-0
- Dielectric/Construction: Polyester film, non-inductively wound with aluminum foil
- Maximum Pulse Rise Time (dV/dt): Ranges from 600 V to 23,300 V per μs depending on capacitance and voltage
Buy the CDE Series 225P Polyester Capacitor: 225P47291WD3
Purchase the CDE 225P47291WD3 polyester film capacitor online today to ensure reliable performance in your power supplies, audio systems, or instrumentation. With a proven track record of over 35 years, this capacitor offers excellent dependability, operating up to +125°C with proper derating, and features a conformal flame-retardant epoxy coating. Its wide availability through CDE ensures quick delivery, making it ideal for industrial and commercial applications. Enhance your electronic projects with a durable and high-quality capacitor designed for demanding environments.
Get CDE 225P47291WD3 today—built for precision and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 225P47291WD3?
You can click on the BUY or RFQ button to purchase 225P47291WD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 225P47291WD3?
You can download the 225P47291WD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 225P47291WD3?
CORNELL DUBILIER
