CORNELL DUBILIER 715P10256JD3 Polypropylene Capacitor
The 715P series is a high-reliability, orange conformal coated polypropylene film/foil capacitor designed for switching, high voltage power supplies, inverters, snubbers, resonant converters, and electronic lighting ballasts. Featuring low dissipation factor, excellent stability, and tight tolerances as close as +1%, these capacitors handle voltage ratings from 100 to 2000 volts DC and AC, with operating temperatures from -55°C to +105°C. Constructed with extended foil and available lead styles, they ensure high pulse current performance and durability in demanding environments.
CORNELL DUBILIER 715P10256JD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +105°C (with voltage derating above +85°C)
- Lead Wire: Tinned copper-clad steel, 032 (0.8) diameter, #20 AWG
- Dissipation Factor: see tabulated data
- Insulation Resistance: 400,000 MO. min at +25°C, 20,000 MO. min at +85°C, 2,000 MO. min at +105°C
- Corona Start Voltage: see tabulated data
- Encapsulation: Flame retardant orange epoxy conformal coating meets UL94V-0
- Dielectric: Polypropylene film
- Construction: Non-inductively wound with extended foil, available in round and pressed profiles with various lead styles
- Maximum dV/dt (Pulse Rise Time): see tabulated data
- Maximum Dissipation Factor: varies with voltage and frequency per data
- Maximum operating temperature: 105°C
- Construction rated voltage withstands 250% (below 800 V) or 200% (800 V and above) for 5 seconds

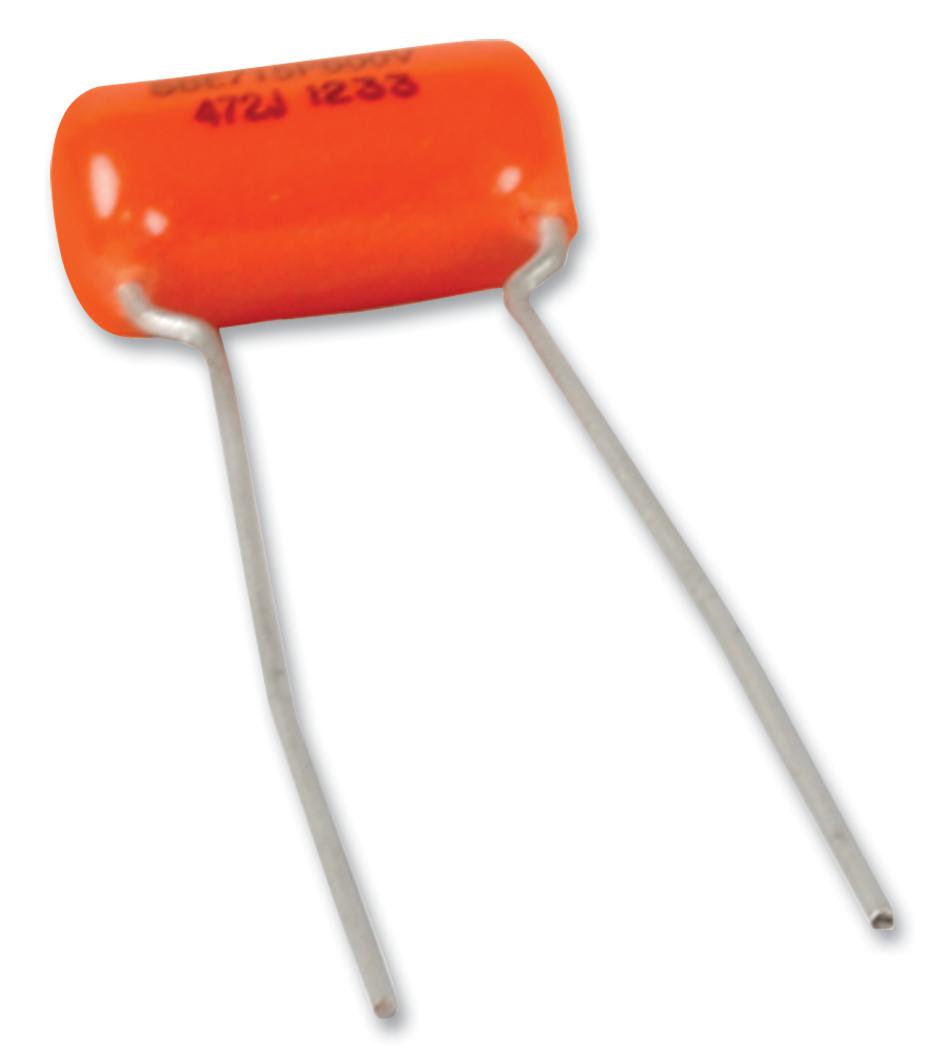

Buy the Buy CDE Cornell Dubilier Polypropylene Capacitors Part Number 715P10256JD3 Online
Enhance your electronic projects with the CDE Cornell Dubilier polypropylene capacitor, model 715P10256JD3. Designed for high voltage, high pulse applications, it offers outstanding stability, low dissipation, and precise tolerances. Easily available online, this capacitor ensures dependable performance in switching power supplies, resonant converters, and lighting ballast systems. With robust construction, temperature resilience up to 105°C, and UL94V-0 flame retardant coating, buying online guarantees quick delivery and trusted quality for your technical needs.
Buy CDE Cornell Dubilier 715P10256JD3 high voltage polypropylene capacitor now and ensure reliable performance in your power supply and inverter circuits.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P10256JD3?
You can click on the BUY or RFQ button to purchase 715P10256JD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P10256JD3?
You can download the 715P10256JD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P10256JD3?
CORNELL DUBILIER
