CORNELL DUBILIER 715P10352JD3 Polypropylene Film Capacitor
The 715P series orange drop polypropylene film/foil capacitors are designed for high current and high pulse applications, featuring low dissipation factor, excellent stability, and tight tolerances as close as +1%. Constructed with extended foil and conformal flame-retardant epoxy coating, they provide reliable performance in switching, power supplies, inverters, resonant converters, and electronic ballasts. Operating from -55°C to +105°C with proper derating, these rugged capacitors withstand high voltages, have low dielectric absorption, and meet UL94V-0 standards, ensuring durability and safety for demanding electronic environments.
CORNELL DUBILIER 715P10352JD3 Polypropylene Film Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +85°C, up to +105°C with derating
- Lead Wire: Tinned copper-clad steel, 0.032 (0.8 mm) diameter, #20 AWG
- Insulation Resistance: 400,000 MO at +25°C, 20,000 MO at +85°C, 2,000 MO at +105°C
- Dielectric: Polypropylene film
- Encapsulation: Flame retardant orange epoxy conformal coating (UL94V-0)
- Maximum Pulse Rise Time, dV/dt: see tabulated data
- Corona Start Voltage: see tabulated data
- Construction: Non-inductively wound with extended foil, series or round profile
- Temperature Coefficient: -180 ppm/°C
- RoHS Compliant
- Maximum DC Voltage Withstand: 250% of rated voltage for <5 sec below 800 V, 200% at or above 800 V

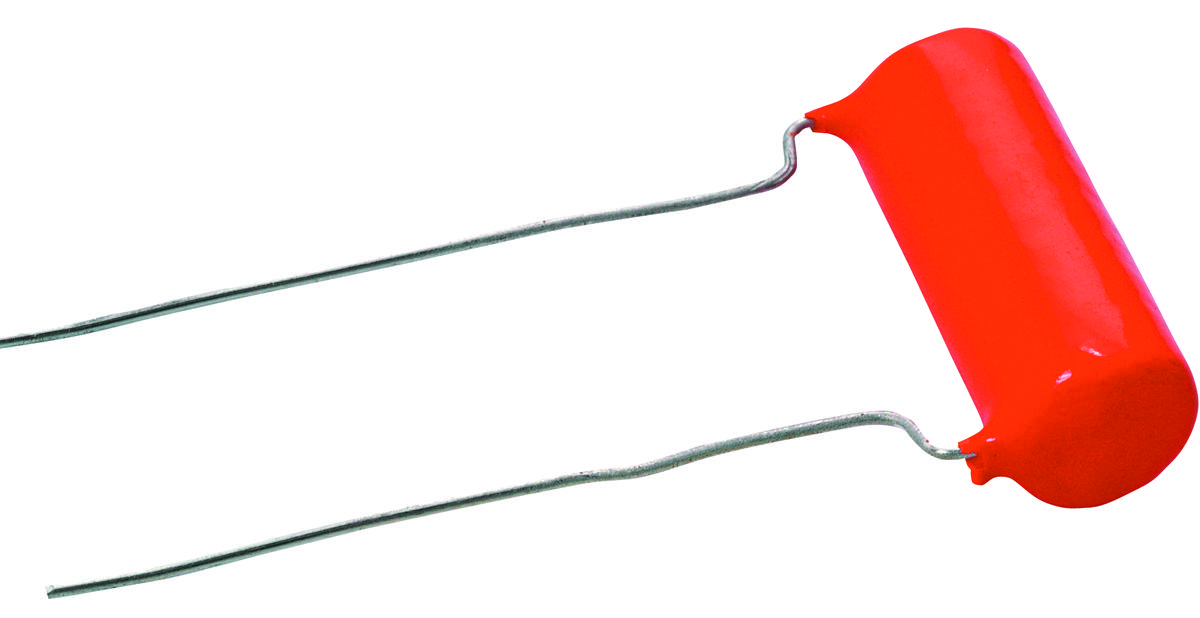

Buy the CDE Series 715P High Pulse Capacitor: 715P10352JD3
Purchase your high-performance polypropylene film capacitor from CDE online today and optimize your power systems and inverters. With low dissipation factor, tight tolerances, and wide operating temperature range up to +105°C, these capacitors are suited for switching, snubbers, resonant converters, and electronic lighting ballasts. Designed with flame-retardant epoxy coating, they meet UL94V-0 standards for safety and durability. Whether for high voltage power supplies or high pulse circuits, buy now for fast delivery, quality assurance, and seamless integration into your electronic projects.
Order your CDE Series 715P polypropylene film capacitor today and ensure high reliability and stability for your high power and pulse applications.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P10352JD3?
You can click on the BUY or RFQ button to purchase 715P10352JD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P10352JD3?
You can download the 715P10352JD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P10352JD3?
CORNELL DUBILIER
