CORNELL DUBILIER 715P10356KD3 Polypropylene Capacitor
The 715P series comprises reliable orange epoxy-encapsulated polypropylene film and foil capacitors designed for high pulse and high current applications in switching power supplies, inverters, and electronic lighting ballasts. They feature excellent stability, low dissipation factor, tight tolerances, and various lead and case options. Rated for operating temperatures up to 105°C with voltage derating, these capacitors provide high insulation resistance, withstand surge voltages, and meet UL94V-0 flame retardant standards. Suitable for demanding industrial and high-frequency circuit environments, offering long-lasting durability and performance.
CORNELL DUBILIER 715P10356KD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 VDC; 70 to 500 VAC
- Operating Temperature Range: -55°C to +85°C; up to +105°C with voltage derating
- Lead Wire: Tinned copper-clad steel, 0.032 (0.8) diameter, #20 AWG
- Insulation Resistance: 400,000 MO minimum at +25°C, 20,000 MO at +85°C, 2,000 MO at +105°C
- Dielectric: Polypropylene film
- Construction: Non-inductively wound with extended foil, flame retardant orange epoxy conformal coating
- Dielectric Withstanding Voltage: 250% rated voltage for below 800 VDC, 200% for 800 VDC and above
- Maximum Dissipation Factor: Varies with capacitance and frequency, detailed in tabulated data
- Corona Start Voltage: Typically increases with voltage rating, detailed in tabulated data
- Applications: Switching power supplies, inverters, snubbers, resonant converters, electronic ballasts
- RoHS Compliant

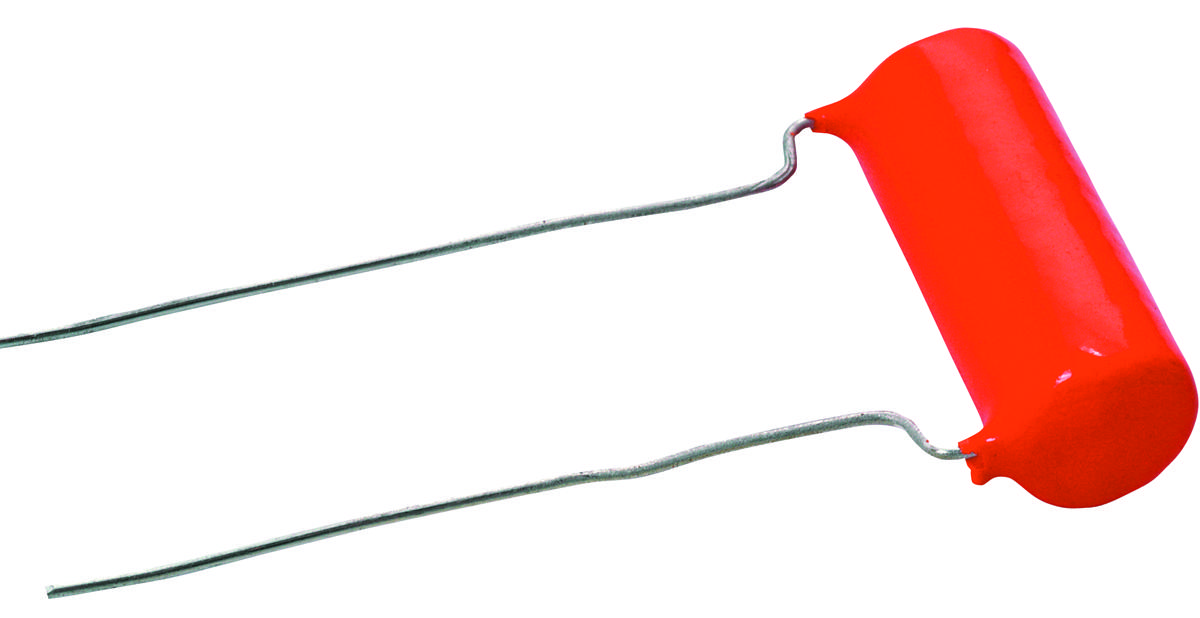

Buy the CDE Series 715P Polypropylene Capacitor Reliable High Pulse Capacitor Part Number 715P10356KD3
Order CDE Cornell Dubilier 715P polypropylene film capacitors online today. These reliable capacitors are perfect for high pulse, high frequency, and industrial applications. Featuring excellent stability, low dissipation factor, and flame retardant orange epoxy coating, they support voltages up to 2000 VDC and operate efficiently up to 105°C with proper derating. Ideal for switching power supplies, inverters, resonant converters, and lighting ballasts, they offer rigorous insulation, tight tolerances, and durability—ensuring your electronic projects run smoothly and reliably over long periods.
Get CDE Cornell Dubilier 715P capacitors today—designed for high pulse and high current environments with long-lasting durability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P10356KD3?
You can click on the BUY or RFQ button to purchase 715P10356KD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P10356KD3?
You can download the 715P10356KD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P10356KD3?
CORNELL DUBILIER
