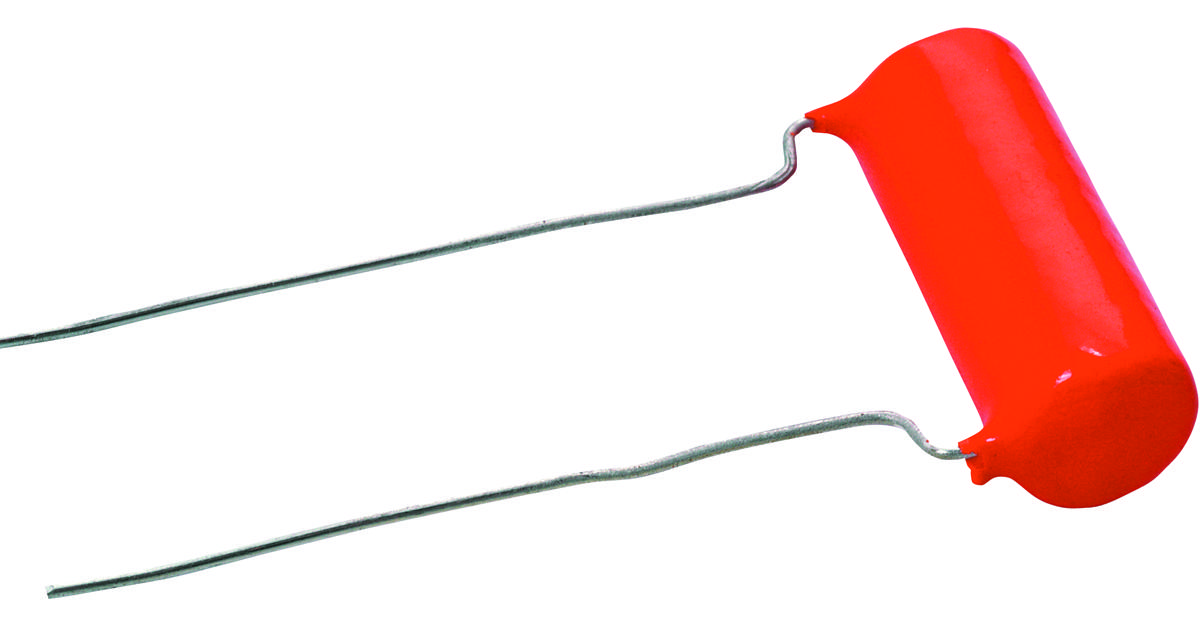

CORNELL DUBILIER 715P10452LD3 Polypropylene Capacitor
The 715P series are high-reliability polypropylene film and foil capacitors suitable for high voltage and high pulse applications such as switch mode power supplies, inverters, snubbers, and electronic lighting. Featuring flame-retardant orange epoxy encapsulation, tight tolerances of ±1%, and excellent stability with very low dissipation factors, these capacitors operate efficiently over a temperature range of -55°C to +105°C with appropriate derating. Constructed with non-inductive winding and various lead styles, they ensure consistent performance in demanding electronic and industrial environments.
CORNELL DUBILIER 715P10452LD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100-2000 VDC, 70-500 VAC
- Operating Temperature Range: -55°C to +85°C, up to +105°C with derating
- Lead Wire: Tinned copper-clad steel, 0.8 mm diameter, #20 AWG
- Insulation Resistance: 400,000 MΩ at 25°C, 20,000 MΩ at 85°C, 2,000 MΩ at 105°C
- Dielectric: Polypropylene film
- Construction: Non-inductively wound extended foil, flame-retardant orange epoxy encapsulation
- Maximum Pulse Rise Time: See tabulated data for various rated voltages
- Corona Start Voltage: See tabulated data
- Dissipation Factor and dV/dt ratings: See datasheet tables
Buy the CDE Series 715P High Voltage Polypropylene Capacitor: 715P10452LD3
Order the CDE Series 715P polypropylene film and foil capacitors online today to benefit from advanced design, flame-retardant encapsulation, tight tolerances, and excellent stability. Ideal for high voltage switching, power supplies, and inverter circuits, these capacitors ensure long-term performance even in demanding environments. With quick online purchasing, you receive durable components with low dissipation factors, operating safely from -55°C to +105°C with voltage ratings up to 2000 VDC. Elevate your electronic projects with quality capacitors shipped promptly from authorized distributors.
Buy CDE Series 715P polypropylene foil capacitors now and experience unmatched reliability and performance in your high pulse power electronics.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P10452LD3?
You can click on the BUY or RFQ button to purchase 715P10452LD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P10452LD3?
You can download the 715P10452LD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P10452LD3?
CORNELL DUBILIER
