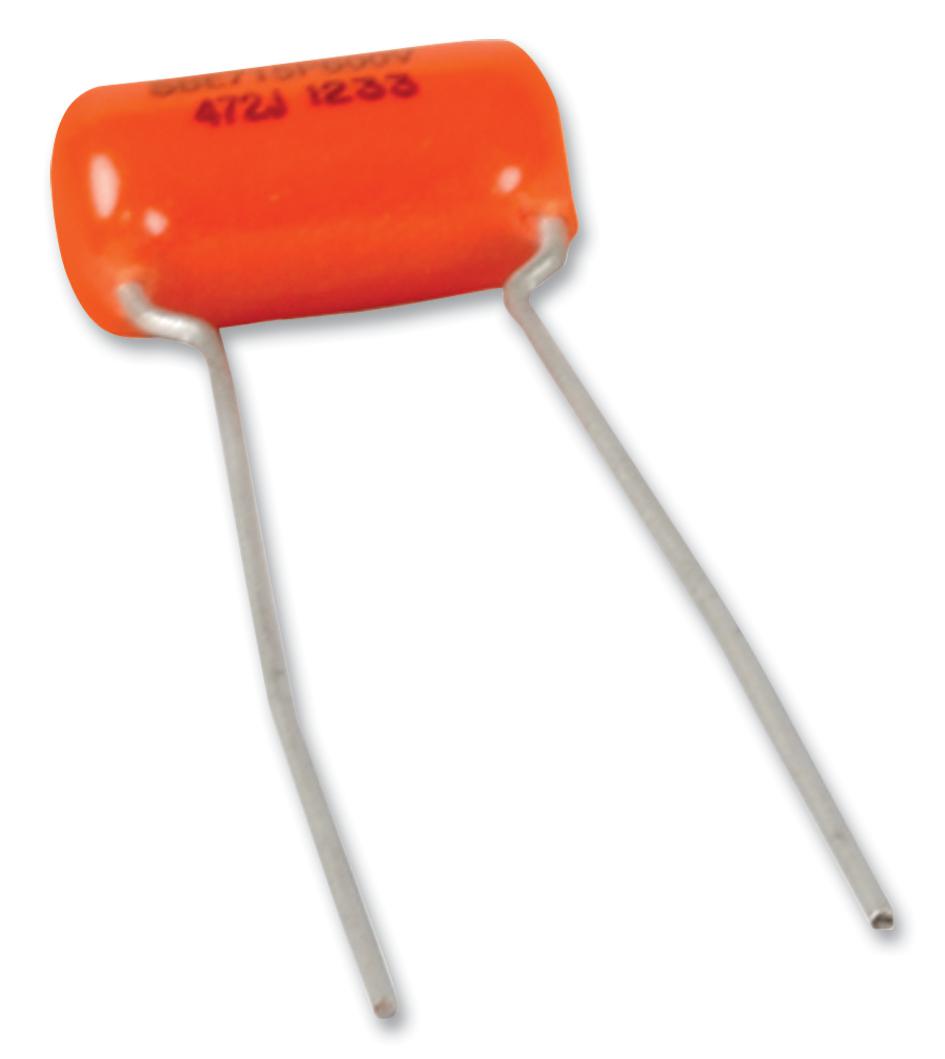

CORNELL DUBILIER 715P22456MD3 High Voltage Capacitor
The 715P series orange drop polypropylene film capacitors are designed for high-current, high-pulse applications such as switching, inverters, and resonant converters. Featuring a conformal flame-retardant epoxy coating, these capacitors offer excellent stability, low dissipation factor, and precise tolerances as close as +1%. Available with various lead styles and spacings, they withstand high voltages from 100V to 2000V DC and operate reliably at temperatures up to +105°C with proper derating for AC applications, making them ideal for electronic lighting, power supplies, and snubber circuits.
CORNELL DUBILIER 715P22456MD3 High Voltage Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C; 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +85°C, up to +105°C with derating
- Lead Wire: Tinned copper-clad steel, 032 (0.8 mm) diameter, #20 AWG
- Insulation Resistance: 400,000 MO. at +25°C, ≥20,000 MO. at +85°C, ≥2,000 MO. at +105°C
- Dielectric: Polypropylene film with non-inductive winding and extended foil
- Encapsulation: Conformal flame-retardant orange epoxy (UL94V-0)
- Maximum Dissipation Factor: As specified in tabulated data
- Corona Start Voltage: As specified in data
- Maximum Pulse Rise Time (dV/dt): As specified in data
- Maximum ripple current and impedance vary with frequency and voltage
Buy the Buy CDE Cornell Dubilier Polypropylene Capacitors Part Number 715P22456MD3 Online
Purchase the high-performance polypropylene film capacitor 715P22456MD3 online today. Engineered for reliable high-current and high-voltage applications, it features low dissipation, tight tolerances, and flame-retardant epoxy insulation. Perfect for switching power supplies, inverters, resonant converters, and electronic lighting ballasts, this capacitor offers exceptional stability over a broad temperature range up to +105°C. Designed with various lead spacings and styles, it ensures easy installation and long service life, making it the ideal choice for demanding electronic circuits requiring durability and precision.
Get CDE Cornell Dubilier polypropylene film capacitor 715P22456MD3 today—built for high pulse, stability, and long-lasting durability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P22456MD3?
You can click on the BUY or RFQ button to purchase 715P22456MD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P22456MD3?
You can download the 715P22456MD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P22456MD3?
CORNELL DUBILIER
