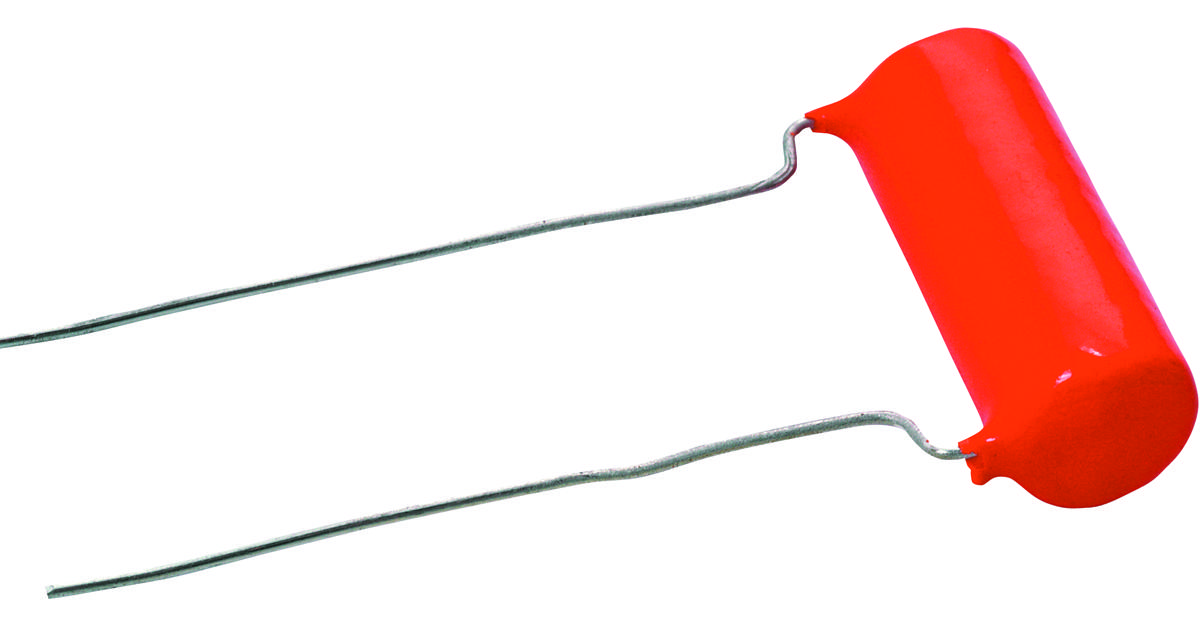

CORNELL DUBILIER 715P33352JD3 Polypropylene Capacitor
The Type 715P Orange Drop polypropylene film/foil capacitor offers excellent stability, low dissipation factor, and tight tolerances as close as +1%. Suitable for high-current, high-pulse applications such as switching power supplies, inverters, and electronic ballasts, these capacitors feature flame-retardant conformal coating and a robust construction. Available in various voltage ratings up to 2000V DC, with operating temperatures from -55°C to +105°C with voltage derating, and constructed with extended foil for enhanced performance and reliability.
CORNELL DUBILIER 715P33352JD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +105°C (with voltage derating above +85°C)
- Lead Wire: Tinned copper-clad steel, 0.032 (0.8) diameter, #20 AWG
- Insulation Resistance: 400,000 MO minimum at +25°C, 20,000 MO at +85°C, 2,000 MO at +105°C
- Dissipation Factor: See tabulated data, max typical 0.1% at 20KHz
- Corona Start Voltage: See tabulated data, varies with voltage rating
- Dielectric: Polypropylene film
- Construction: Non-inductively wound with extended foil
- Encapsulation: Flame-retardant orange epoxy conformal coating (UL94V-0)
- RoHS Compliant
- Maximum pulse rise time (dV/dt): See specifications, varies with voltage and capacitance
Buy the Cornell-Dubilier Series 715P Polypropylene Capacitor Reliable High-Voltage Film Capacitor
Purchase the CDE 715P polypropylene film capacitor online and secure high-quality, reliable performance for your industrial or electronic projects. With tight tolerances, robust construction, and high voltage ratings up to 2000V DC, this capacitor ensures exceptional stability and durability over its operating temperature range from -55°C to +105°C. Ideal for switching power supplies, inverters, snubbers, and resonant converters, this flame-retardant orange encapsulated component is RoHS compliant and designed for demanding high-current pulse applications. Order now for quick delivery and expert support.
Order your CDE Series 715P polypropylene film capacitor today and ensure your high-voltage, high-pulse electronic projects are built with dependable performance and stability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P33352JD3?
You can click on the BUY or RFQ button to purchase 715P33352JD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P33352JD3?
You can download the 715P33352JD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P33352JD3?
CORNELL DUBILIER
