CORNELL DUBILIER 715P47352KD3 Polypropylene Capacitor
The 715P series capacitors are high-reliability polypropylene film and foil capacitors designed for switching, high voltage power supplies, inverters, snubbers, and electronic lighting ballasts. They feature a conformal flame-retardant orange epoxy coating, low dissipation factor, excellent stability, and various lead configurations. Capacitance ranges from 001 pF to 0.47 uF with tolerances as close as +1%. Operating temperature extends to +105°C with proper voltage derating, offering robust insulation resistance and high pulse handling, ideal for demanding industrial electronic applications.
CORNELL DUBILIER 715P47352KD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +85°C, up to +105°C with voltage derating
- Lead Wire: Tinned copper-clad steel, 032 (0.8) diameter, #20 AWG
- Insulation Resistance: 400,000 MO. at +25°C, 20,000 MO. at +85°C, 2,000 MO. at +105°C
- Corona Start Voltage: See tabulated data
- Dissipation Factor: See tabulated data
- Dielectric: Polypropylene film
- Encapsulation: Flame retardant orange epoxy conformal coating
- Dimensions and lead configurations vary; standard sizes with multiple lead spacings and crimp styles
- Maximum pulse rise time and corona start voltage rated per specific test data
- Maximum dV/dt pulses: up to 43,200 V/µs depending on voltage and capacitance
- Applications include switching power supplies, inverters, snubbers, resonant converters, and electronic lighting ballast

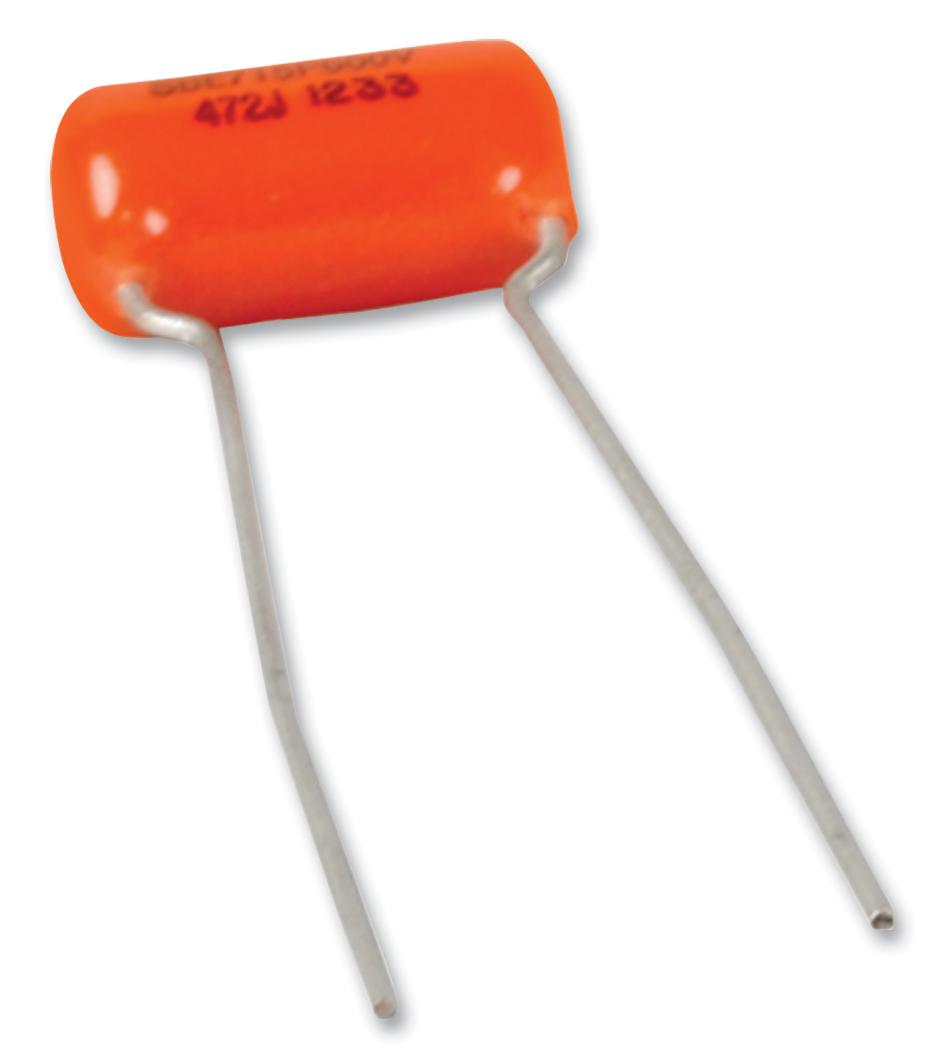

Buy the CORNELL-DUBILIER Series 715P Polypropylene Capacitor Part Number 715P47352KD3
Purchase your CDE 715P series polypropylene film capacitor online now and ensure your electronic systems operate efficiently with high reliability. These capacitors are perfect for high voltage switching, inverter circuits, snubbers, and resonant applications. Featuring flame-retardant epoxy coating and a wide operating temperature range, they deliver excellent stability and low dissipation factor. With various lead styles, sizes, and voltage ratings, buying online guarantees fast delivery and quality assurance for your industrial or electronic project needs, providing dependable performance under demanding conditions.
Order your CDE Series 715P high-voltage polypropylene capacitor today and enhance your industrial projects with proven reliability and superior stability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P47352KD3?
You can click on the BUY or RFQ button to purchase 715P47352KD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P47352KD3?
You can download the 715P47352KD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P47352KD3?
CORNELL DUBILIER
