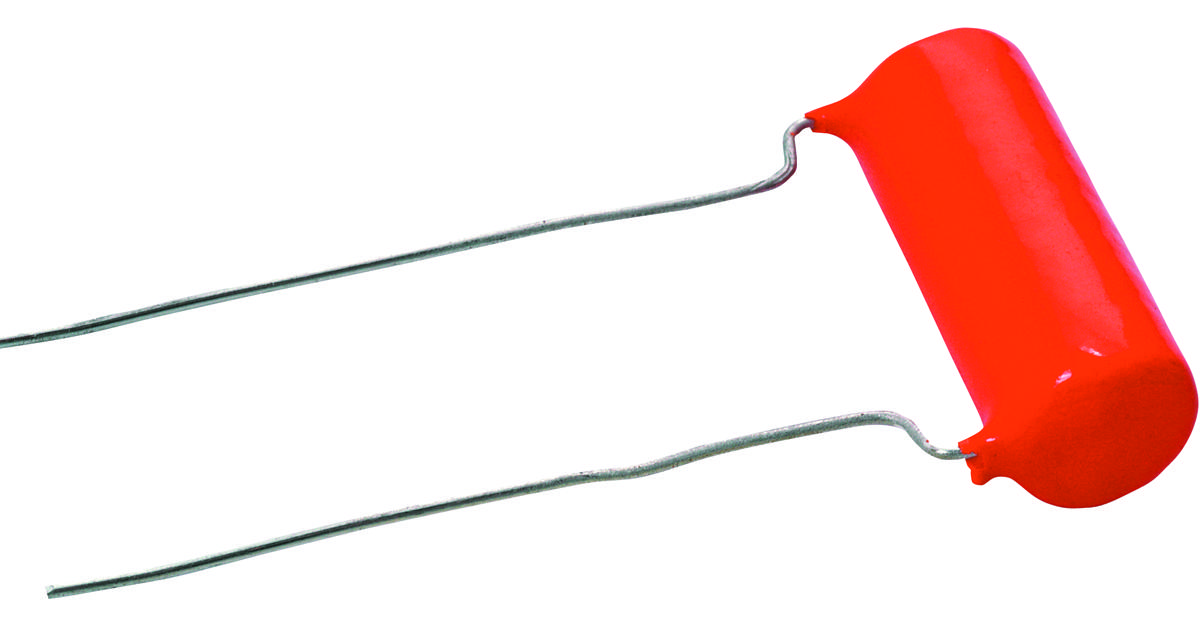

CORNELL DUBILIER 715P47454MD3 Polypropylene Film Capacitor
The 715P series polypropylene film and extended foil capacitors are renowned for their low dissipation factor, excellent stability, and high reliability. Designed for high current and pulse applications, they feature a conformally coated flame-retardant orange epoxy encapsulation meeting UL94V-0 standards. These capacitors operate within -55°C to +85°C, with derating up to +105°C at reduced voltages. They withstand high dielectric withstanding voltage and display low dissipation factors at various frequencies. Suitable for high-voltage switching power supplies, inverters, snubbers, and resonant converters, these durable components are RoHS compliant and are available in various sizes, lead styles, and ratings.
CORNELL DUBILIER 715P47454MD3 Polypropylene Film Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +85°C, up to +105°C with voltage derating
- Lead Wire: Tinned copper-clad steel, 032 (0.8) diameter, #20 AWG
- Insulation Resistance: 400,000 MO minimum at +25°C, 20,000 MO at +85°C, 2,000 MO at +105°C
- Dielectric: Polypropylene film with extended foil construction
- Encapsulation: Flame-retardant orange epoxy conformal coating (UL94V-0)
- Max Dissipation Factor: See specific values at various frequencies and voltages
- Corona Start Voltage: Varies with voltage rating, typical values provided
- Constructed non-inductively with extended foil, series section designs at high voltages
- Applications include switching, high voltage power supplies, inverters, snubbers, resonant converters, lighting ballasts
Buy the Buy CDE Cornell Dubilier Type 715P Polypropylene Capacitors Part Number 715P47454MD3 Online
Purchase the high-quality CDE 715P series polypropylene film capacitor online today to enhance your electronic designs. These capacitors provide exceptional stability, low dissipation factor, and reliable operation across a wide temperature range. Perfect for switching power supplies, inverters, snubbers, and resonant converters, they feature flame-retardant orange epoxy encapsulation, RoHS compliance, and multiple sizes and ratings. Order now to secure durable, high-performance components that meet stringent industry standards and deliver dependable long-term performance in demanding applications.
Order your CDE Series 715P polypropylene film capacitor with high pulse stability today and ensure reliable performance in your high-voltage projects.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P47454MD3?
You can click on the BUY or RFQ button to purchase 715P47454MD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P47454MD3?
You can download the 715P47454MD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P47454MD3?
CORNELL DUBILIER
