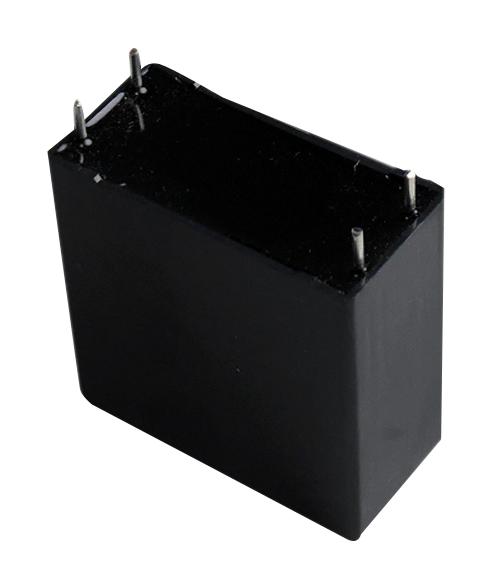

CORNELL DUBILIER 953BQW7KSFF AC Film Capacitor
The 953B metallized polypropylene film capacitor series is designed for AC applications like UPS systems and output filtering. Featuring fuse protection and UL 810 recognition, these capacitors operate safely up to 85 °C and have a service life of 10,000 hours at rated voltage. Constructed with UL94V-0 plastic, dry resin, and tin-plated copper terminals, they offer low dissipation and self-healing properties, ensuring reliability and safety for industrial electrical systems.
CORNELL DUBILIER 953BQW7KSFF AC Film Capacitor Specifications:
- Capacitance Range: 2.5 uF to 50 uF
- Capacitance Tolerance: +10 %, optionally ±5%
- Rated Voltage: 160 Vac, 250 Vac, 275 Vac
- Operating Temperature Range: -40 °C to 85 °C
- IEC Climatic Category: 40/85/56
- Service Life Objective: 10,000 hours at 85 °C
- Protection: UL 810 recognized, fail-safe design
- Case Material: Plastic UL94V-0
- Resin Material: Dry Resin UL 94V-0
- Terminal Material: Tin Plated Copper
- Construction Dimensions vary by case code, typical sizes include width 20-35 mm, height 37.5-57.5 mm, length 37.5-52.5 mm
- Designed for high reliability, low dissipation, and self-healing features suitable for industrial AC filtering and UPS applications.
Buy the CDE Cornell Dubilier 953B – Reliable AC Filter Capacitors for Industrial Applications
Purchase CDE Cornell Dubilier 953B metallized polypropylene film capacitors online today—engineered for reliable AC filtering, fuse protection, UL 810 certification, and high-temperature operation up to 85 °C. These capacitors deliver low dissipation, self-healing properties, and a service life of 10,000 hours, making them ideal for UPS systems and various industrial applications. Experience fast online ordering and ensure your electrical systems operate with confidence, safety, and durability. Secure high-quality, RoHS-compliant capacitors for your projects now.
Get CDE Cornell Dubilier 953B capacitors today—built for precision, fail-safe operation, and long-lasting durability in industrial electrical systems.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 953BQW7KSFF?
You can click on the BUY or RFQ button to purchase 953BQW7KSFF from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 953BQW7KSFF?
You can download the 953BQW7KSFF datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 953BQW7KSFF?
CORNELL DUBILIER
