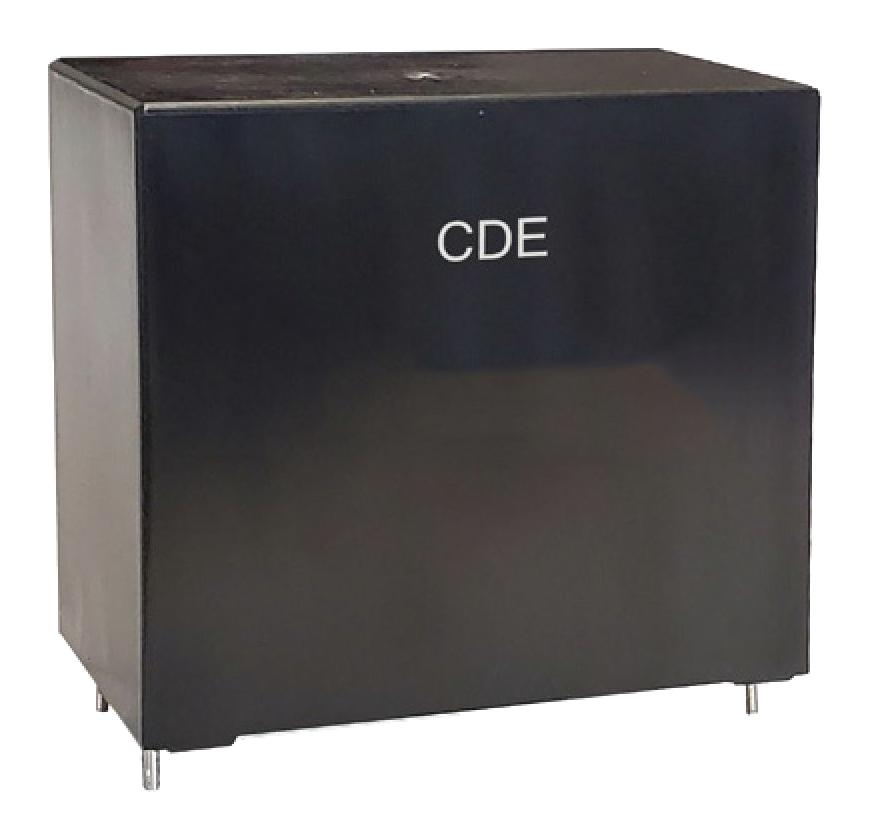

CORNELL DUBILIER ALH206K351C084 AC Filter Capacitor
The ALH series AC filter capacitors are designed for harsh environments, offering high reliability for industrial and automotive applications. These polypropylene film capacitors operate at voltages up to 450 Vac, feature self-healing properties, low losses, and are qualified under AEC-Q200 standards. With an operating temperature range from -40°C to 105°C, they provide a lifespan exceeding 100,000 hours at 70°C. The capacitors are constructed with UL94V-0 plastic casings, tin-plated copper terminals, and are RoHS compliant, suitable for high frequency filtering, harmonic suppression, and AC power line applications in demanding conditions.
CORNELL DUBILIER ALH206K351C084 AC Filter Capacitor Specifications:
- Capacitance: 20.0 uF
- Capacitance Tolerance: +10%
- Rated Voltage: 350 Vac
- Operating Temperature Range: -40°C to 105°C
- Life Expectancy: >100,000 hours at 70°C
- Test Voltage between Terminals: 150% of DC voltage for 10s
- Insulation Resistance: 230,000 MΩ·pF @ 100 Vdc, 25°C
- Case Material: UL94V-0 plastic
- Terminal Material: Tin Plated Copper
- RoHS compliant
- Maximum RMS Current: see data tables
- Dimensions: Standard sizes vary by model, detailed dimensions available in datasheets
Buy the CDE Series ALH AC Filter Capacitors: ALH206K351C084
Purchase the CDE ALH206K351C084 AC filter capacitor online today to benefit from superior electrical performance, extended lifespan, and certified reliability for industrial and automotive applications. Designed for harsh conditions, these polypropylene film capacitors offer high dielectric strength, low losses, and a construction that withstands vibrations and temperature extremes, making them ideal for harmonic filtering, power line noise suppression, and high-frequency applications. Secure your power systems with this dependable component, ensuring optimal functionality and long-term durability in demanding environments.
Buy CDE ALH206K351C084 high-performance AC filter capacitors now and ensure durable, reliable power filtering in demanding environments.
