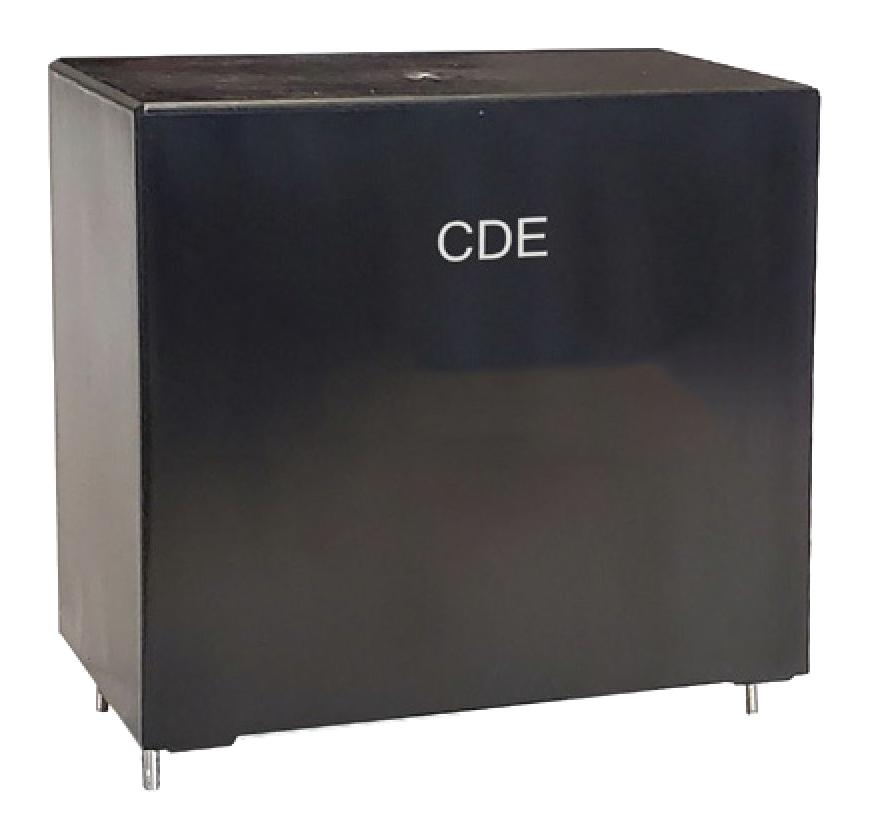

CORNELL DUBILIER ALH225K351A072 AC Filter Capacitors
High-performance AC filter capacitors designed for harsh environments, rated up to 450 Vac, operating from -40°C to 105°C. These AEC-Q200 qualified polypropylene film capacitors offer high reliability, self-healing properties, and low loss characteristics, suitable for high-frequency applications. They feature robust construction with UL94V-0 plastic cases and tin-plated copper terminals, ensuring durability and efficient electrical performance in demanding industrial and automotive settings. With extensive testing and compliance, these capacitors deliver over 100,000 hours of life at 70°C.
CORNELL DUBILIER ALH225K351A072 AC Filter Capacitors Specifications:
- Capacitance range: 0.22 to 50 uF
- Capacitance Tolerance: +10% standard, optional +5%
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage 1.35% per °C above 85°C)
- Test Voltage between Terminals @ 25°C: 150% of DC voltage for 10s
- Test Voltage between Terminals and Case @ 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ×pF @ 100 Vdc, 25°C after 1 min
- Life Expectancy: 100,000 hours at 70°C hot spot, rated voltage
- Construction Material: Plastic UL94V-0 case, dry resin UL94V-0, tin-plated copper terminals
- RoHS compliant, IEC 61071, AEC-Q200 qualified
Buy the CORNELL-DUBILIER Series ALH AC Filter Capacitors 450 Vac: ALH225K351A072
Purchase your CDE ALH series AC filter capacitors online now to ensure high-performance and durable filtering solutions for demanding industrial and automotive applications. These capacitors are designed with advanced construction technology, rated up to 450 Vac, and operate effectively between -40°C to 105°C. Their self-healing, low-loss characteristics combined with extensive testing and compliance standards guarantee long life and reliable electrical performance in harsh environments. Buy online today for quick delivery and peace of mind for your electrical projects.
Order your CDE Series ALH 450 Vac AC filter capacitor today and ensure your electrical systems operate reliably in the toughest environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH225K351A072?
You can click on the BUY or RFQ button to purchase ALH225K351A072 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH225K351A072?
You can download the ALH225K351A072 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH225K351A072?
CORNELL DUBILIER
