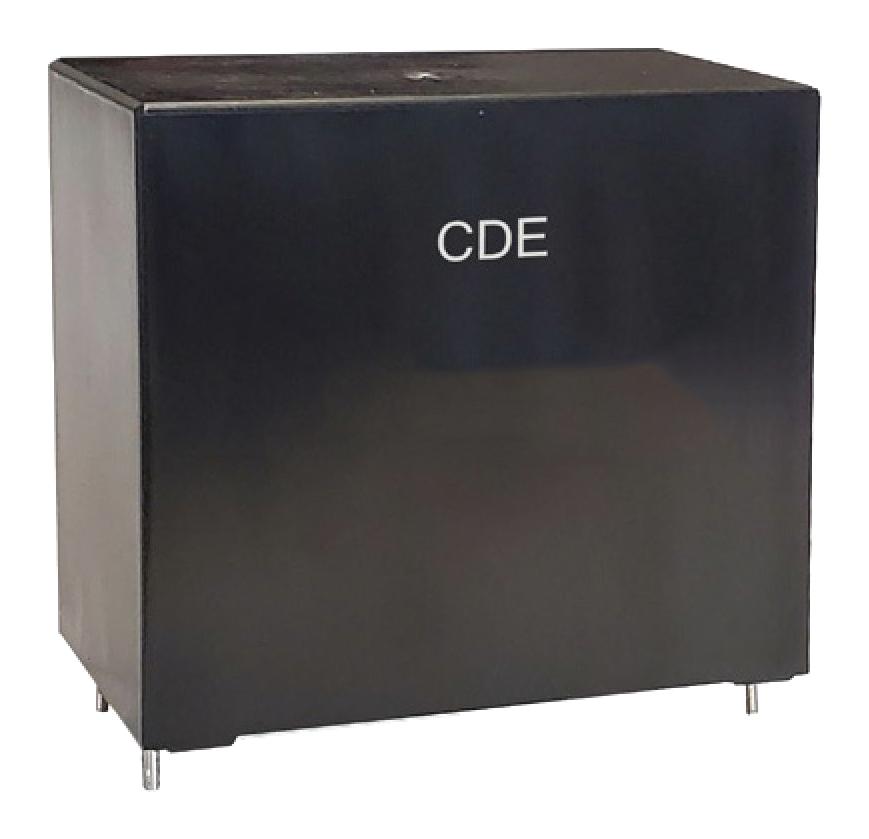

CORNELL DUBILIER ALH225K401A072 AC Filter Capacitors
The ALH series AC filter capacitors are designed for harsh environments, offering superior durability and performance at high frequencies. Rated for operating temperatures up to 105°C with compliance to AEC-Q200 standards, these capacitors feature self-healing properties, low loss characteristics, and a robust construction suitable for automotive and industrial applications. Available in various voltage and capacitance ratings, they ensure reliable power filtration, extended life expectancy of over 100,000 hours at 70°C, and meet rigorous testing standards including UL94V-0 case material and tin-plated copper terminals. Their compact dimensions support easy integration into complex electrical systems, with options covering voltages from 160V to 450V AC and capacitance from 0.22 to 50μF, ideal for high-frequency filtering and harmonic applications.
CORNELL DUBILIER ALH225K401A072 AC Filter Capacitors Specifications:
- Capacitance Range: 0.22 to 50 μF
- Capacitance Tolerance: +10% standard, 5% optional
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage at >85°C by 1.35% per °C)
- Maximum rms Current: Refer to data tables
- Test Voltage between Terminals @ 25°C: 150% of DC voltage (1.414 x Vac) for 10s
- Test Voltage between Terminals and Case @ 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ x pF @ 100 Vdc, 25°C after 1 minute
- Life Expectancy: Over 100,000 hours at 70°C and rated voltage
- Construction: Plastic UL94V-0 case, dry resin UL94V-0, tin-plated copper terminals
- RoHS Compliant
- Dimensions: Length varies depending on model, typical height approximately 20-50 mm, case diameter between 11-50 mm
- Standards: IEC 61071, AEC-Q200 Qualified
- Certifications: UL Recognized E128034, cUL construction only - unprotected
Buy the CDE ALH225K401A072 – Reliable AC Filter Capacitors for Industrial Applications
Purchase the CDE ALH225K401A072 AC filter capacitor online today. Designed for harsh environments, it provides high reliability, extended lifespan exceeding 100,000 hours at 70°C, and optimal performance at high frequencies. Suitable for industrial and automotive applications, it features a robust UL94V-0 case, tin-plated copper terminals, and compliance with AEC-Q200 standards. Secure your project’s power filtering needs with this durable capacitor, offering excellent thermal stability, low loss, and easy installation options in compact design. Order now for fast delivery and trusted quality.
Get CDE ALH225K401A072 today—built for high-temperature endurance and long-lasting reliability in demanding electrical systems.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH225K401A072?
You can click on the BUY or RFQ button to purchase ALH225K401A072 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH225K401A072?
You can download the ALH225K401A072 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH225K401A072?
CORNELL DUBILIER
