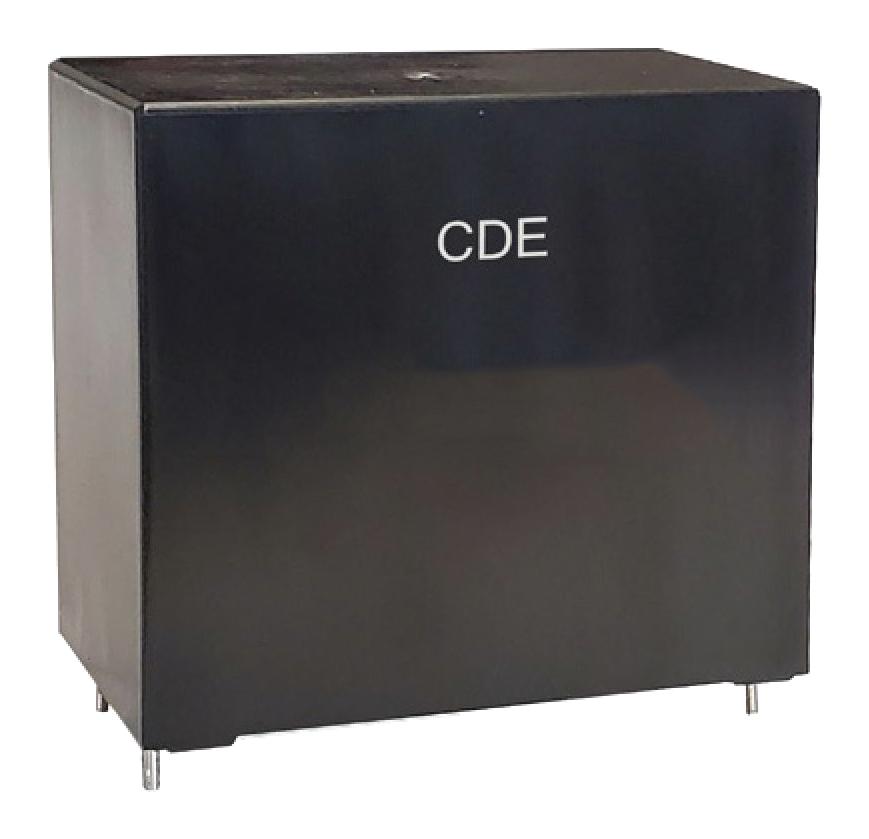

CORNELL DUBILIER ALH475K351B084 AC Filter Capacitor
High-performance AC filter capacitors designed for harsh environments, these polypropylene film components operate effectively at temperatures up to 105°C and offer robust performance for industrial and automotive applications. Qualified to AEC-Q200 standards and RoHS compliant, they feature self-healing properties, low loss, and optimized AC voltage performance. Available in various capacitance and voltage ratings, they provide reliable filtering in high-frequency circuits. Their rugged construction ensures long life expectancy of up to 100,000 hours at 70°C, making them suitable for demanding electrical environments.
CORNELL DUBILIER ALH475K351B084 AC Filter Capacitor Specifications:
- Capacitance Range: 0.22 to 50 uF
- Capacitance Tolerance: +10% standard, optional +5%
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage 1.35% per °C above 85°C)
- Life Expectancy: 100,000 hours at 70°C
- Test Voltage between Terminals @ 25°C: 150% of DC voltage (1.414 x Vac) for 10s
- Test Voltage between Terminals and Case @ 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ×pF @ 100 Vdc 25°C after 1 minute
- Case Material: UL94V-0 plastic
- Resin Material: Dry Resin UL94V-0
- Terminal Material: Tin-plated Copper
Buy the CDE ALH – Reliable AC Filter Capacitors for Industrial Applications
Shop online now for the CDE ALH series AC filter capacitors, engineered for harsh environments and long-term reliability. These polypropylene film capacitors feature high temperature resistance up to 105°C, robust construction, and self-healing properties, making them ideal for industrial, automotive, and high-frequency applications. With various voltage ratings from 160 to 450 Vac and capacitance options from 0.22 to 50 uF, they ensure optimal filtering and electrical performance. Secure your supply today for dependable operation in demanding conditions and improve your system reliability.
Order your CDE Series ALH AC filter capacitor today and enhance your electrical systems with durable, high-performance filtering components designed for harsh environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH475K351B084?
You can click on the BUY or RFQ button to purchase ALH475K351B084 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH475K351B084?
You can download the ALH475K351B084 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH475K351B084?
CORNELL DUBILIER
