CORNELL DUBILIER ALH505K351B084 AC Filter Capacitor
These high-reliability AC filter capacitors are designed for harsh environments and meet automotive-grade testing standards. They are suitable for high-frequency applications, offering excellent electrical performance with self-healing and low-loss features. Rated for voltages from 160 to 450 Vac and operating temperatures from -40°C to 105°C, these capacitors provide extended life and stability in demanding conditions. They comply with AEC-Q200, RoHS standards, and feature UL94V-0 case material, tin-plated copper terminals, and various capacitance options for diverse industrial and automotive applications.
CORNELL DUBILIER ALH505K351B084 AC Filter Capacitor Specifications:
- Capacitance Range: 0.22 to 50 uF
- Capacitance Tolerance: +10% (standard), +5% (optional)
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40 °C to 105 °C (derate above 85 °C)
- Test Voltage between Terminals at 25 °C: 150% of DC voltage
- Test Voltage between Terminals and Case at 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ·pF @ 100 Vdc 25 °C
- Life Expectancy: 100,000 hours at 70°C
- Construction: Plastic UL94V-0 case, dry resin UL94V-0, tin-plated copper terminals
- Compliance: IEC 61071, AEC-Q200, RoHS
- Dimensions vary by capacitance and voltage, with specific sizes listed in datasheets
- Maximum RMS Current varies per model; see detailed datasheets for specifics

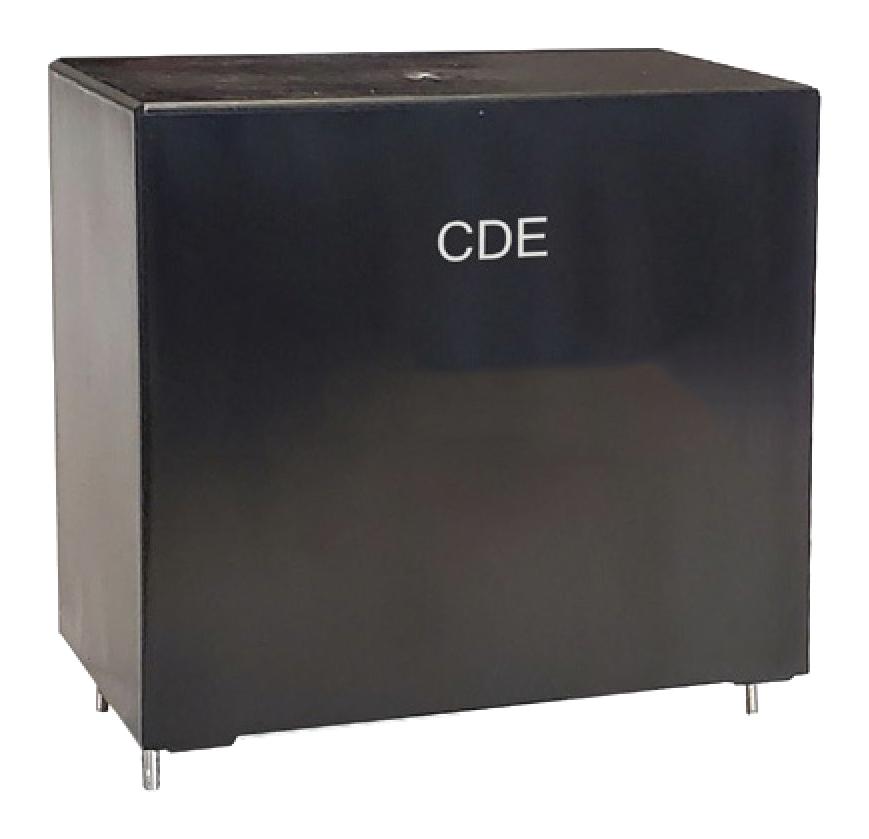

Buy the CDE ALH406K351B084 – Reliable AC Filter Capacitors for Industrial Applications
Purchase CDE ALH505K351B084 online today—engineered for demanding industrial and automotive applications with long-lasting reliability and high performance. These AC filter capacitors are designed with advanced construction technology, meeting automotive-grade standards, and providing excellent electrical stability in harsh environments. Rated for voltages up to 450 Vac and operating temperatures from -40°C to 105°C, they feature self-healing capabilities, low losses, and extended lifespan, ensuring dependable operation in critical applications. Order now for fast delivery, technical support, and premium quality components.
Get CDE ALH505K351B084 today—built for precision, durability, and superior performance in harsh environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH505K351B084?
You can click on the BUY or RFQ button to purchase ALH505K351B084 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH505K351B084?
You can download the ALH505K351B084 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH505K351B084?
CORNELL DUBILIER
