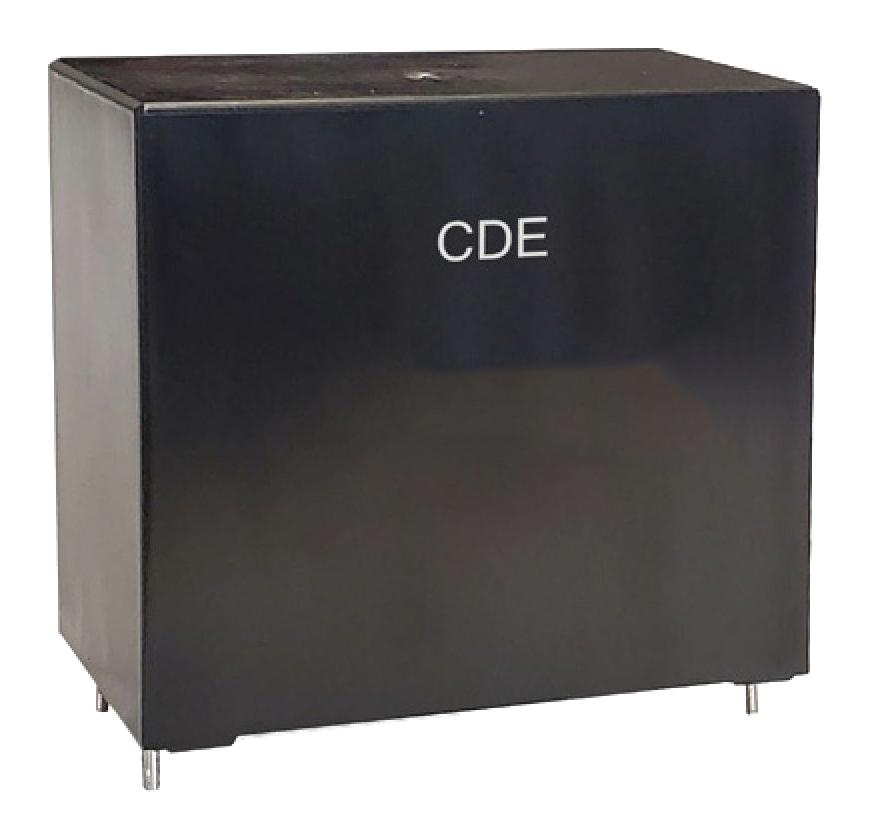

CORNELL DUBILIER ALH505K401B064 AC Filter Capacitors
The AC filter capacitors are designed for harsh environments, utilizing advanced construction technology for reliability. Qualified under AEC-Q200, these polypropylene film capacitors deliver excellent performance, with a typical lifespan of 100,000 hours at 70°C, and operate effectively across a wide temperature range of -40°C to 105°C. They feature self-healing properties, low loss, and high insulation resistance. Available with voltage ratings from 160 to 450 Vac, they are ideal for high-frequency applications in automotive and industrial settings, ensuring durability and consistent performance in demanding conditions.
CORNELL DUBILIER ALH505K401B064 AC Filter Capacitors Specifications:
- Capacitance Range: 0.22 to 50 uF
- Capacitance Tolerance: +10% standard, 5% optional
- Rated Voltage: 160 to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage 1.35% per °C above 85°C)
- Test Voltage between Terminals @ 25°C: 150% of DC voltage (1.414 x Vac) for 10s
- Test Voltage between Terminals and Case @ 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ×pF @ 100 Vdc 25°C after 1 minute
- Life Expectancy: 100,000 hours @ 70°C hot spot, rated voltage
- Construction: UL94V-0 case and resin, tin-plated copper terminals
- Compliance: IEC 61071, AEC-Q200, RoHS
- Dimensions: Typical length ranges from 20 mm to 75 mm, with case height around 20-50 mm, various lead configurations
Buy the Buy CDE AC Filter Capacitors Part Number ALH505K401B064 Online
Buy your CDE series AC filter capacitor ALH505K401B064 online today. Designed for demanding environments, these capacitors provide long life, high insulation resistance, and stable performance across a wide temperature range. With rated voltages up to 450 Vac, they are ideal for automotive, industrial, and high-frequency applications. Easy to install with various lead options, these capacitors ensure durability and low loss. Get authentic, certified parts online and improve the reliability of your electrical systems.
Order your CDE SeriesALH 505K 401B 064 durable AC filter capacitor today and ensure reliable performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH505K401B064?
You can click on the BUY or RFQ button to purchase ALH505K401B064 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH505K401B064?
You can download the ALH505K401B064 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH505K401B064?
CORNELL DUBILIER
