CORNELL DUBILIER ALH685K351B064 AC Filter Capacitor
AC filter capacitors designed for harsh environments provide reliable performance in demanding conditions. Rated for up to 450 Vac, these capacitors feature self-healing, low loss construction with enhanced durability, and are qualified for automotive-grade testing. Suitable for high-frequency applications, they offer a capacitance range of 0.22 to 50 uF with tolerance options of +10% or +5%. Operating temperatures span -40°C to 105°C, with a life expectancy of 100,000 hours at 70°C. Encased in UL94V-0 plastic with tin-plated copper terminals, they meet IEC 61071 and AEC-Q200 standards, ensuring durability and safety.
CORNELL DUBILIER ALH685K351B064 AC Filter Capacitor Specifications:
- Capacitance Range: 0.22 to 50 uF
- Capacitance Tolerance: +10% standard, 5% optional
- Rated Voltage: Up to 450 Vac
- Operating Temperature Range: -40°C to 105°C (derate voltage 1.35% per °C above 85°C)
- Maximum rms Current: Refer to data tables
- Test Voltage between Terminals at 25°C: 150% of DC voltage (1.414 x Vac) for 10s
- Test Voltage between Terminals and Case at 25°C: 3 kVac @ 50/60 Hz for 10s
- Insulation Resistance: 230,000 MΩ x pF @ 100 Vdc 25°C after 1 min
- Life Expectancy: 100,000 hours at 70°C hot spot, rated voltage
- Construction: Plastic UL94V-0 case, dry resin UL94V-0, tin-plated copper terminals
- Certifications: IEC 61071, AEC-Q200, RoHS Compliant
- Dimensions: Length varies with capacitance; typical case dimensions depend on model
- Design Features: Self-healing, low loss, high reliability, optimized for automotive and industrial use

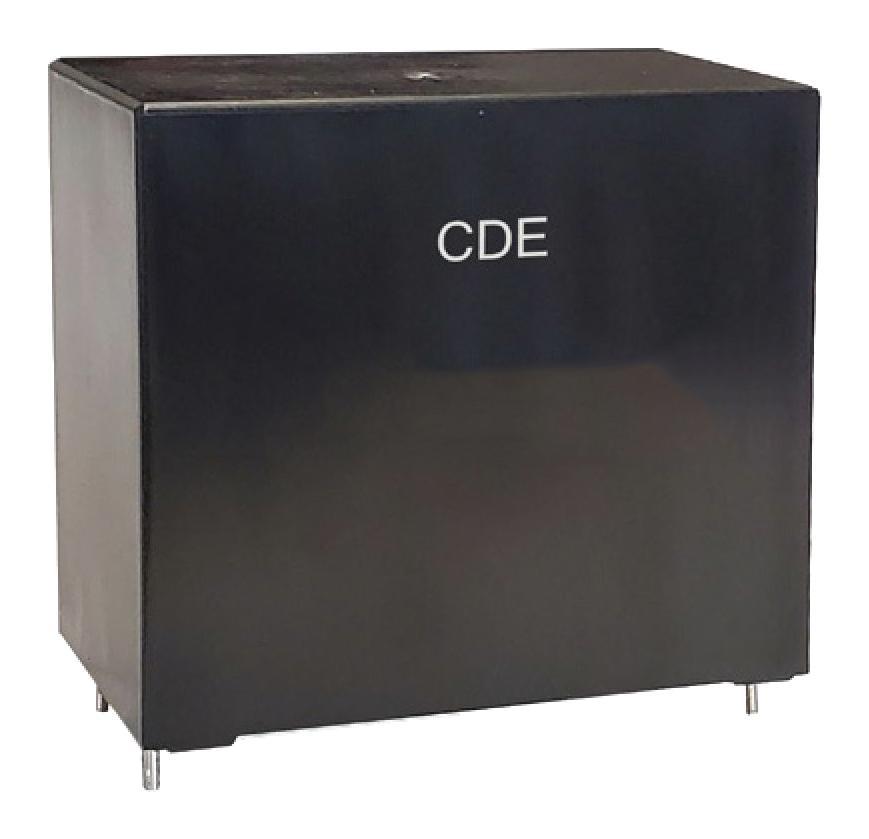

Buy the Buy CDE AC Filter Capacitors Part Number ALH685K351B064 Online
Purchase your CDE SeriesALH ALH685K351B064 AC filter capacitor online today to experience reliable, high-performance filtering in demanding conditions. Designed for harsh environments, these capacitors offer excellent durability, stability, and longevity, making them ideal for automotive and industrial applications. With flexible voltage ratings up to 450 Vac, extensive testing standards, and UL and IEC certifications, you can trust these components to meet your project’s rigorous requirements. Order now and enhance your device's electromagnetic compatibility and overall system reliability.
Order your CDE SeriesALH ALH685K351B064 high-reliability AC filter capacitor today and ensure optimal performance in harsh environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER ALH685K351B064?
You can click on the BUY or RFQ button to purchase ALH685K351B064 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part ALH685K351B064?
You can download the ALH685K351B064 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of ALH685K351B064?
CORNELL DUBILIER
