CORNELL DUBILIER BLC120J901B4A Power Film Capacitor
The BLC series comprises high-reliability polypropylene film DC link capacitors designed for inverter applications in renewable energy and UPS systems. These PCB mount power film capacitors feature advanced metallized film technology, offering high capacitance and ripple current capability along with a broad voltage range from 700V to 1100V DC. Suitable for medium power wind, solar, and fuel cell systems, they are RoHS compliant, with robust construction including tin-plated copper terminals, dry resin case, and UL94V-0 materials, ensuring long service life and stability in demanding environments.
CORNELL DUBILIER BLC120J901B4A Power Film Capacitor Specifications:
- Capacitance Range: 8 to 55 uF
- Capacitance Tolerance: +5% standard
- Rated Voltage: 700 to 1100 Vdc
- Operating Temperature Range: -45°C to 85°C
- Maximum RMS Voltage: 230 Vac
- Test Voltage between Terminals: 150% rated DC voltage for 10s @ 25°C
- Test Voltage between Terminals and Case: 2 kVac @ 50/60 Hz for 10s
- Life Test: 5000 hours @ 85°C, rated voltage
- Case Material: Plastic UL94V-0
- Resin Material: Dry Resin UL94V-0
- Terminal Material: Tin Plated Copper
- Dimensions vary by model, case sizes range from approximately 20mm to 57.5mm in width and 41.5mm to 52.5mm in height

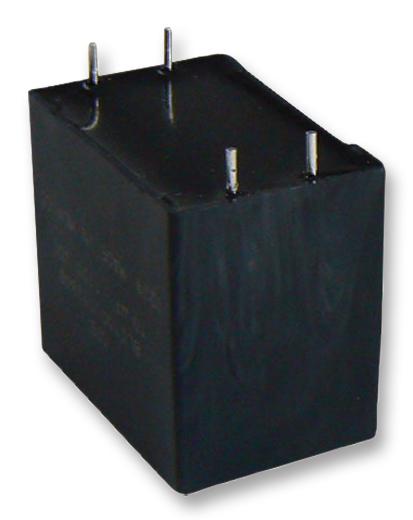

Buy the CDE Series BLC High-Voltage Power Film Capacitor: BLC120J901B4A
Experience superior performance with the CDE Series BLC polypropylene film capacitors, designed for demanding inverter applications in renewable energy and industrial systems. Featuring high capacitance, excellent ripple current capacity, and broad voltage ratings from 700V to 1100V DC, these capacitors provide long-term stability and reliability. Constructed with robust UL94V-0 materials, dry resin cases, and tin-plated copper terminals, they support efficient and safe operation at high temperatures. Secure your project’s success by purchasing this proven product online today.
Order your CDE Series BLC high-voltage power film capacitor today and ensure reliable performance in your renewable energy inverter projects.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER BLC120J901B4A?
You can click on the BUY or RFQ button to purchase BLC120J901B4A from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part BLC120J901B4A?
You can download the BLC120J901B4A datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of BLC120J901B4A?
CORNELL DUBILIER
