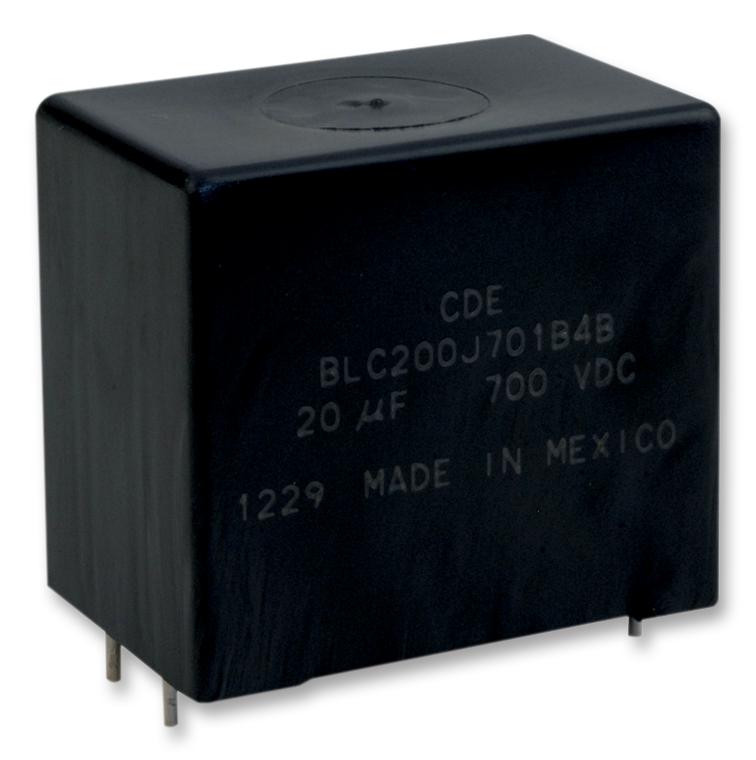

CORNELL DUBILIER BLC200J701B4B Power Film Capacitor
The BLC series consists of high-reliability, PCB mount power film capacitors using advanced metallized film technology. Designed for DC link applications, these capacitors offer high capacitance and ripple current capacity, making them suitable for medium power inverters in wind, solar, fuel cells, and UPS systems. They feature rugged construction with plastic UL94V-0 cases, dry resin insulation, and tin-plated copper terminals, ensuring long life and stable operation under demanding electrical conditions. Rated voltages range from 700V to 1100V DC, with temperature tolerance from -45°C to 85°C and compliance with RoHS standards.
CORNELL DUBILIER BLC200J701B4B Power Film Capacitor Specifications:
- Capacitance Range: 8 to 55 uF
- Capacitance Tolerance: +5%
- Rated Voltage: 700 to 1100 Vdc
- Operating Temperature Range: -45°C to 85°C
- Maximum RMS Voltage: 230 Vac
- Test Voltage between Terminals @ 25°C: 150% rated DC voltage for 10s
- Test Voltage between Terminals and Case @ 25°C: 2 kVac @ 50/60 Hz for 10s
- Life Test: 5000 hours @ 85°C, rated voltage
- Material: Plastic UL94V-0 case, dry resin UL94V-0, tin-plated copper terminals
- Dimensions: Size varies with capacitance and voltage ratings; typical dimensions approximately 158mm x 40mm
- RoHS compliant; Standards: IEC 61071
Buy the CDE Polypropylene Series – Reliable DC Link Capacitors for Industrial Applications
Discover the superior performance of our Power Film Capacitors designed for DC link applications. Featuring high capacitance, high ripple current capability, and reliable construction, these capacitors are perfect for inverter systems, renewable energy, and industrial power equipment. Rated up to 1100V DC, with operating temperatures from -45°C to 85°C, they meet RoHS standards and are engineered for long-term stability. Invest now to ensure your energy systems operate with maximum efficiency and durability, all through our easy online purchase process.
Buy CDE Polypropylene DC Link Capacitors now and experience unmatched reliability and high ripple current for inverter systems, renewable energy, and industrial power solutions.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER BLC200J701B4B?
You can click on the BUY or RFQ button to purchase BLC200J701B4B from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part BLC200J701B4B?
You can download the BLC200J701B4B datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of BLC200J701B4B?
CORNELL DUBILIER
