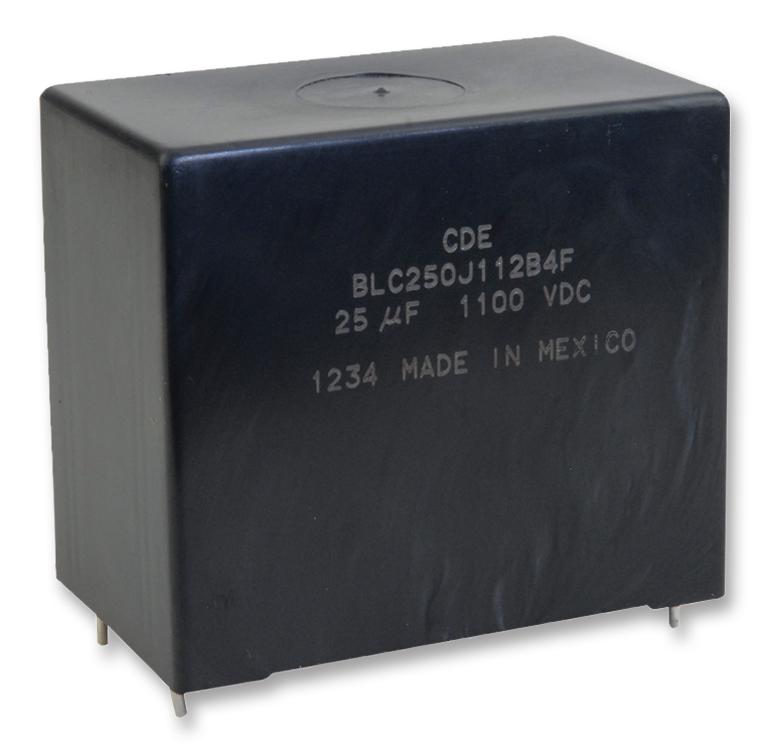

CORNELL DUBILIER BLC250J112B4F DC Link Capacitor
The BLC series polycarbonate mounting DC link capacitors utilize advanced metallized film technology to deliver long life and high reliability. Designed for inverter applications in wind, solar, fuel cells, and UPS systems, they feature high capacitance, ripple current capability, and are RoHS compliant. With voltage ratings from 700 Vdc to 1100 Vdc and capacitance from 8 to 55 uF, these capacitors withstand operating temperatures from -45°C to 85°C. They meet IEC standards, come with durable tin-plated copper terminals, and ensure efficient energy management in power conversion systems.
CORNELL DUBILIER BLC250J112B4F DC Link Capacitor Specifications:
- Capacitance Range: 8 to 55 μF
- Capacitance Tolerance: +5%
- Rated Voltage: 700 to 1100 Vdc
- Operating Temperature Range: -45°C to 85°C
- Maximum RMS Voltage: 230 Vac
- Test Voltage between Terminals @ 25°C: 150% rated DC voltage for 10s
- Test Voltage between Terminals and Case @ 25°C: 2 kVac @ 50/60 Hz for 10s
- Life Test: 5000 hours @ 85°C, rated voltage
- Case Material: Plastic UL94V-0
- Resin Material: Dry Resin UL94V-0
- Terminal Material: Tin Plated Copper
Buy the CDE Series BLC DC Link Capacitor: 112 F
Purchase the CDE BLC250J112B4F DC link capacitor online today to ensure your inverter or renewable energy project features long-lasting, reliable performance. Designed with advanced metallized film technology, it offers high capacitance, suitable for medium power conversions including wind, solar, and UPS systems. With a voltage rating of 1100 Vdc, a capacitance of 55 μF, and a temperature range of -45°C to 85°C, this capacitor guarantees stability under demanding conditions. Enjoy fast delivery, secure ordering, and quality assured from trusted online sources for your engineering needs.
Get CDE BLC250J112B4F today—built for high reliability and efficient power stabilization in inverter and renewable energy systems.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER BLC250J112B4F?
You can click on the BUY or RFQ button to purchase BLC250J112B4F from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part BLC250J112B4F?
You can download the BLC250J112B4F datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of BLC250J112B4F?
CORNELL DUBILIER
