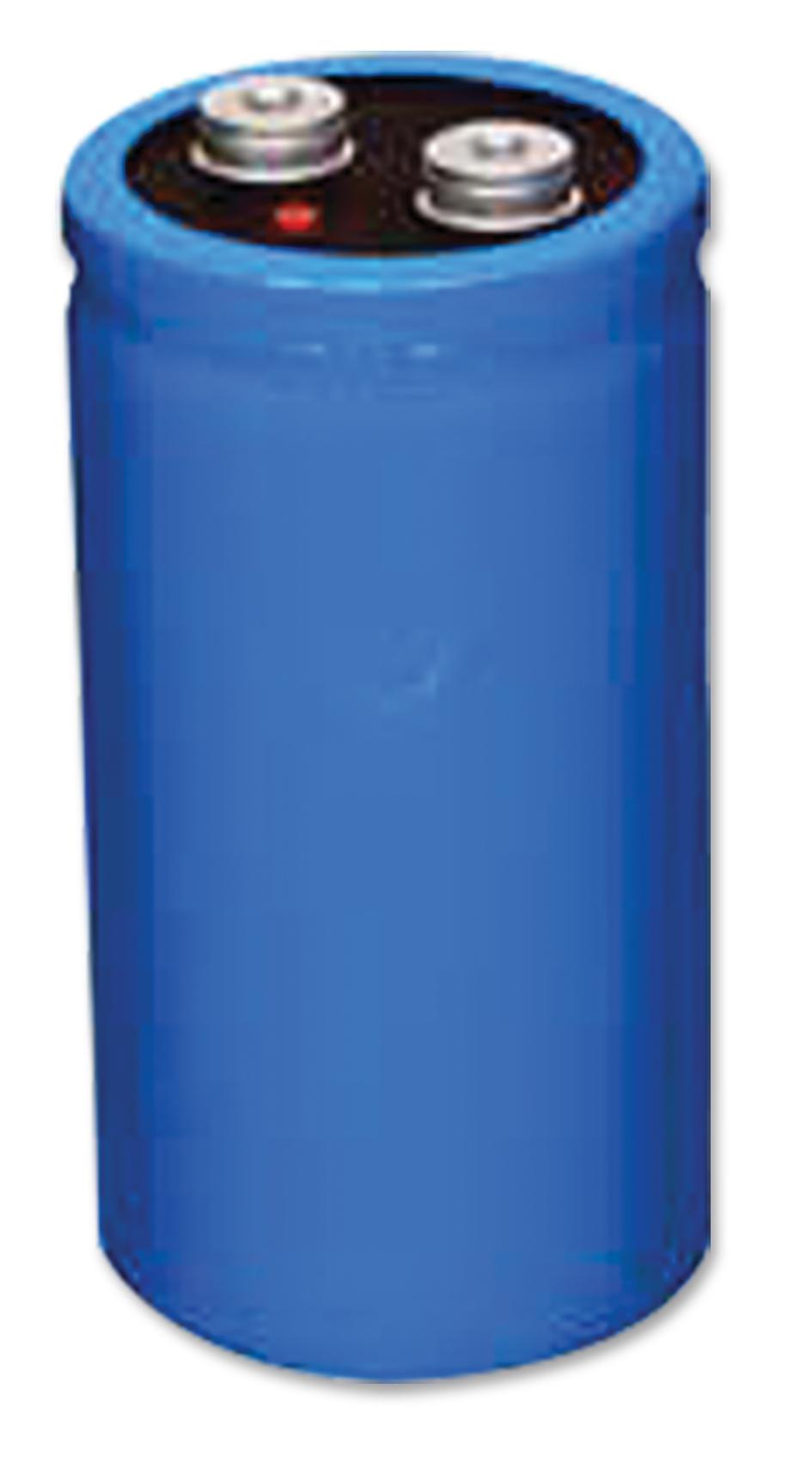

CORNELL DUBILIER DCMC152M400BJ5M High Capacitance Capacitor
The DCMC152M400BJ5M is a high-capacitance aluminum screw terminal capacitor designed for power supply filtering and energy storage applications. Featuring thermal-Pak extended cathode construction, it offers a temperature range from 40°C to +85°C and a rated voltage up to 400 Vdc. The capacitor provides capacitance values from 110 uF to 2.7 F with tight tolerances, low leakage current, and excellent ripple current handling. Its robust design ensures reliable operation in UPS systems, welding equipment, and other industrial power applications, with stable performance across temperature and frequency variations.
CORNELL DUBILIER DCMC152M400BJ5M High Capacitance Capacitor Specifications:
- Temperature Range: 40°C to +85°C
- Rated Voltage Range: 6.3 Vdc to 550 Vde
- Capacitance Range: 110 uF to 2.7 F
- Capacitance Tolerance: -10% +75% < 100 Vde, 10% +50% = 160 Vdc
- Leakage Current: < 6 VCVPA, 6 mA max at 5 min
- Endurance Life Test: 2000 h @ full load at 85°C, Capacitance +20%, ESR 200% of limit
- Shelf Life Test: 500h @85°C, Capacitance 100% of limit, ESR 100% of limit
- Case Size: 1.375 inches diameter, length varies with model, typically 2.125 inches for this part
- Construction: Thermal-Pak™ extended cathode, aluminum case with screw terminals, high ripple current capability
- Certifications: RoHS Compliant, UL Listed
- Impedance Ratio: < 20 (6.3-10 Vdc), <8 (16-50 Vdc), <4 (63-100 Vdc), <3 (150-550 Vdc)
- Stud Dimensions: 1.375 inches diameter, standard thread size for mounting, can style high post or low post depending on terminal type
Buy the Cornell Dubilier 152M400BJ5M – Reliable High Capacitance for Industrial Applications
Secure your industrial power solutions with the Cornell Dubilier high capacitance aluminum screw terminal capacitor. Rated up to 400 Vdc and designed for power filters, energy storage, and UPS applications, it offers high ripple current capability and extended thermal-Pak™ cathode construction for cool operation. Constructed with robust aluminum case and screw terminals, it ensures reliable long-term operation across a broad temperature range. Perfect for welding equipment, power supplies, and critical energy storage systems, order online today for fast delivery.
Get Cornell Dubilier 152M400BJ5M today—built for power supply filtering and energy storage in industrial power systems.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER DCMC152M400BJ5M?
You can click on the BUY or RFQ button to purchase DCMC152M400BJ5M from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part DCMC152M400BJ5M?
You can download the DCMC152M400BJ5M datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of DCMC152M400BJ5M?
CORNELL DUBILIER
