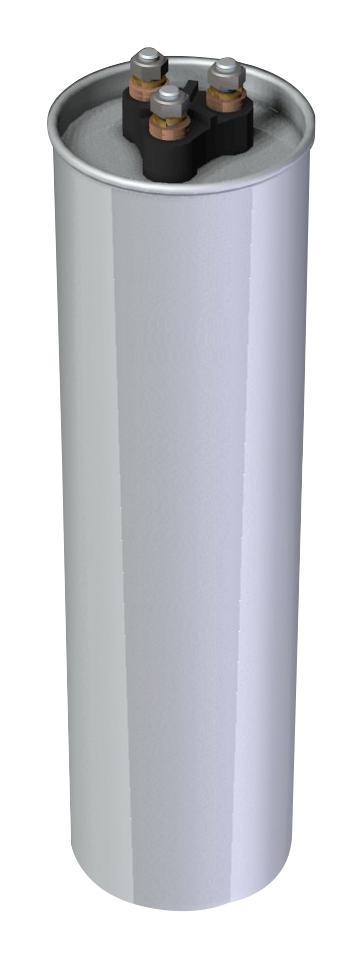

CORNELL DUBILIER EPFC025F33N Power Factor Correction Capacitor
The EPFC025F33N is a high-reliability power factor correction capacitor designed for industrial applications. Made with environmentally friendly dielectric materials, it features self-healing metallized polypropylene film, internal pressure-sensitive interrupters, and discharge resistors for safety. Rated for 240 VAC, 50 Hz, and capable of handling harmonic currents, this capacitor provides efficient reactive power compensation. It has a long service life of 100,000 hours, robust construction with heavy gauge welded steel casing, and is suitable for three-phase delta connection setups in demanding power systems. Its compact design and safety features ensure reliable operation in high harmonic environments.
CORNELL DUBILIER EPFC025F33N Power Factor Correction Capacitor Specifications:
- Rated Voltage: 240 VAC, 50 Hz
- Connection: 3-phase delta
- Capacitance Tolerance: ±15%
- Construction: Self-healing metallized polypropylene film with environmental-friendly dielectric
- Enclosure: Heavy gauge welded steel casing with M12 mounting stud
- Discharge Resistors: Internal for safety, reduce residual voltage within 1 minute
- Service Life: 100,000 hours
- Operating Temperature Range: -40°C to +46°C
- Standards: UL810, cUL Recognized, RoHS compliant
- Features: Internal pressure-sensitive interrupter, repeatable safety shutdown, low losses (<0.5 W/KVAR at 60Hz, 25°C)
Buy the CD-Aero Series EPFC Power Factor Correction Capacitor: EPFC025F33N
Enhance your power system efficiency with the CD-Aero EPFC025F33N—an industrial-grade capacitor with environmentally friendly construction, safety features including internal pressure interrupters, low losses, and a long 100,000-hour lifespan. Ideal for high harmonic applications, it provides effective reactive power compensation. Easy to install with robust welded steel casing and M12 mounting, this capacitor ensures reliable operation in demanding environments. Invest today for improved power quality and energy savings in industrial facilities.
Get CD-Aero EPFC025F33N today—designed for high reliability, safety, and long-lasting performance in industrial power systems.
