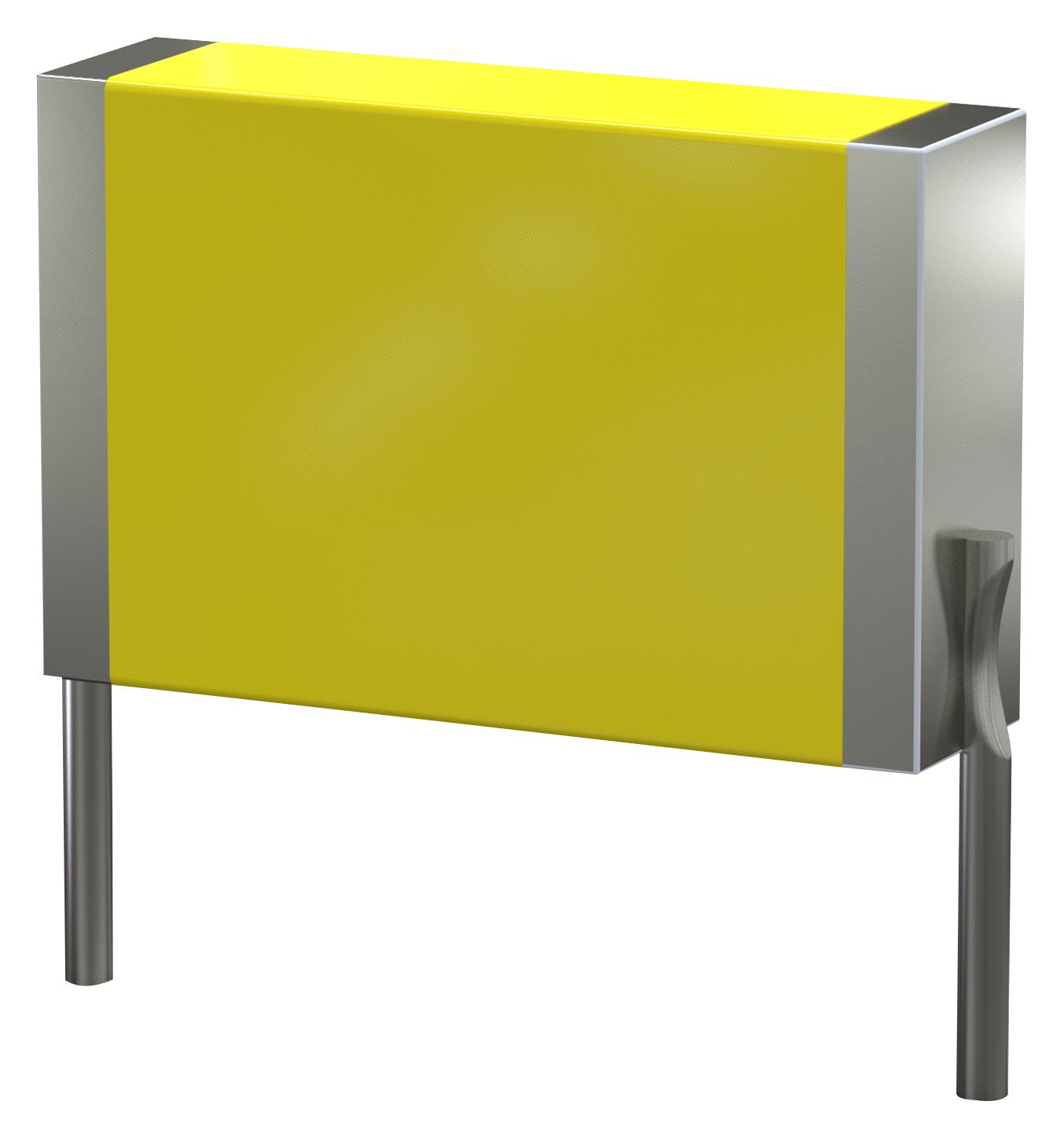

CORNELL DUBILIER RA3225K100 Radial PET Film Capacitor
The RA style radial PET film capacitor offers a compact, rugged design with high dv/dt capability, very low ESR, and self-healing features. Ideal for high-frequency switching power supplies, noise suppression, EMI reduction, and long-life applications, it boasts a wide temperature range from -55°C to 125°C, multiple voltage ratings up to 500 Vdc, and capacitance values from 0.1 to 10 pF. Its construction ensures reliability, efficiency, and wave solderability, making it suitable for demanding electronic environments requiring stability and durability over prolonged usage.
CORNELL DUBILIER RA3225K100 Radial PET Film Capacitor Specifications:
- Capacitance Range: 0.1 to 10 pF at 1 kHz
- Rated Voltage: 100, 250, 400, 500 Vdc
- Operating Temperature Range: -55°C to 125°C
- Temp. Derating: -1.25% /°C above +85°C
- Dissipation Factor: 51.0% at 1 KHz/25°C
- Insulation Resistance: 21,000 MO x pF (max 1,000 MO)
- Dielectric Strength: 1.6x rated VDC for 2 sec (Bold P.N.: 1.3x rated VDC)
- Self Inductance: 2 to 6 nH (typical)
- Dimensions: Variable per model, e.g., 0.35 in. (8.89 mm) length, 0.155 in. (3.94 mm) diameter for small sizes
- Material: Metallized polyester film, self-healing construction
- Features: High dv/dt capability, low ESR/ESL, wave solderable, rugged & efficient
- Compliance: RoHS
- Application: High-frequency switching, noise suppression, EMI reduction, long-life electronics
Buy the Buy CDE Radial PET Film Capacitors Part Number RA3225K100 Online
Purchase the CDE RA3225K100 radial PET film capacitor online today. Engineered for high dv/dt, low ESR, and self-healing performance, it ensures reliable operation in power supplies, noise suppression, and EMI reduction applications. With a compact size, wide temperature range from -55°C to 125°C, and multiple voltage ratings, it provides long-lasting durability. Order now for fast shipping and enhance your electronic system’s stability, efficiency, and longevity with this high-quality, wave solderable capacitor designed for demanding industrial and consumer electronics environments.
Get CDE RA3225K100 today—built for high-frequency switching and reliable noise filtering in demanding electronic environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER RA3225K100?
You can click on the BUY or RFQ button to purchase RA3225K100 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part RA3225K100?
You can download the RA3225K100 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of RA3225K100?
CORNELL DUBILIER
