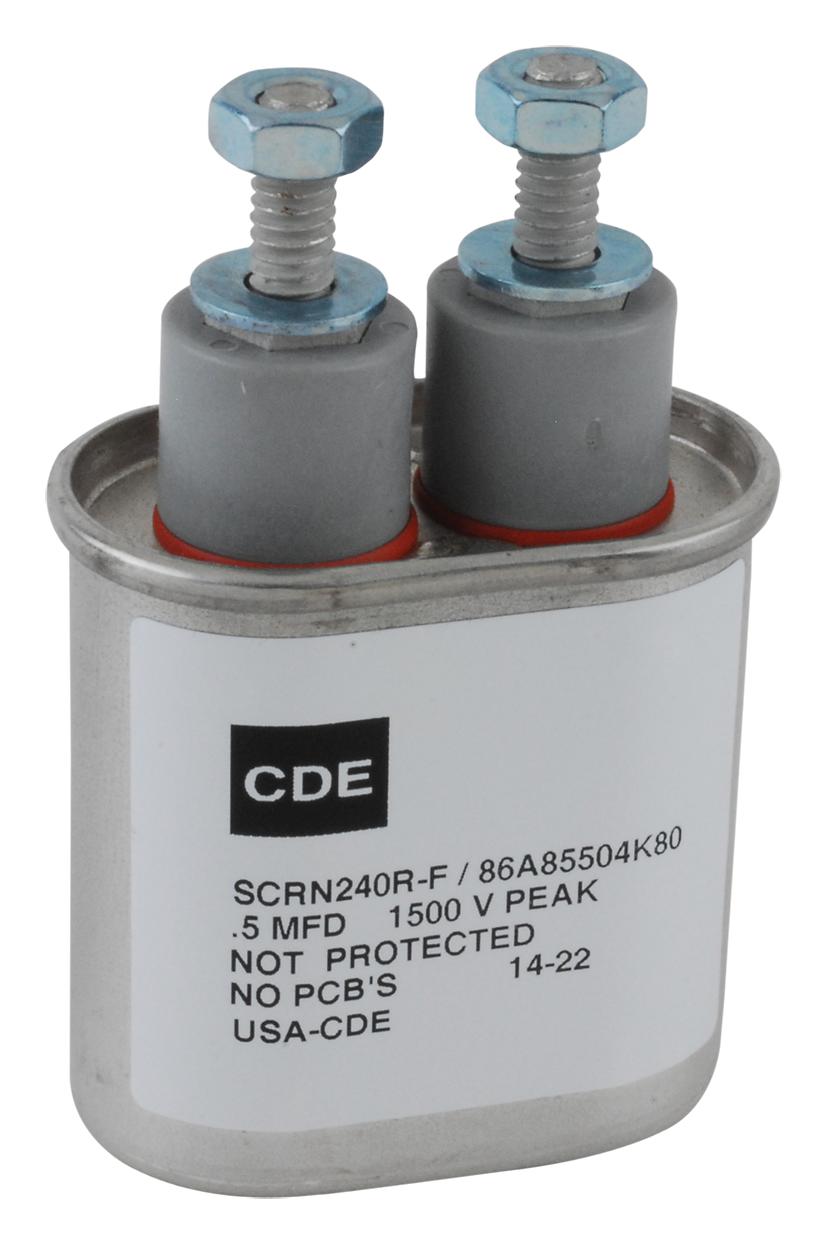

CORNELL DUBILIER SCRN240RF High-current commutating capacitor
The SCRN240RF is a film-paper/extended foil commutating capacitor designed for high peak and rms current applications, suitable for SCR commutating, high-frequency, and pulsed power. Encased in a metal case with insulated terminals, it offers 40,000 hours life at rated voltage and temperature, conforming to standards like EIA RS401. Its robust construction with tin-plated steel or aluminum case and electro-tin plated copper terminals ensures high reliability and durability in industrial power systems.
CORNELL DUBILIER SCRN240RF High-current commutating capacitor Specifications:
- Capacitance: 240 pF
- Capacitance Tolerance: +10%
- Rated Voltage: 200 Vpk
- Maximum RMS Current: 60 Irms
- Maximum RMS Voltage: see application guide
- Test Voltage between Terminal at 25°C: 2 x rated peak for 60 s
- Test Voltage between Terminals & Case at 25°C: 2 x reference AC voltage +1000 Vac for 60s
- Life Expectancy: 40,000 hours at full rated voltage and temperature
- Case Material: Tin plated steel or aluminum
- Terminal Material: Electro-tin plated copper stud
- Operating Temperature Range: -40°C to +80°C
- Standards: EIA RS401, RoHS compliant
- Dimensions: Length 2.13 inches, height approximately 0.56 inches, case code A
Buy the CDE Commutating Capacitor – Reliable SCRN240RF for Industrial Applications
Purchase the CDE SCRN240RF high-current commutating capacitor online today. Engineered for SCR applications, pulsed power, and high-frequency systems, it offers a 40,000-hour lifespan at rated voltage and temperature. Encased in durable metal with insulated terminals, this capacitor provides reliable performance under demanding electrical conditions. Its robust construction and compliance with industry standards ensure safety and longevity. Ideal for industrial power systems requiring high peak and rms currents, enhance your applications with this high-quality, dependable component available for quick online buying.
Get CDE SCRN240RF today—built for high current performance and long-lasting reliability in power conversion systems.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER SCRN240RF?
You can click on the BUY or RFQ button to purchase SCRN240RF from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part SCRN240RF?
You can download the SCRN240RF datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of SCRN240RF?
CORNELL DUBILIER
