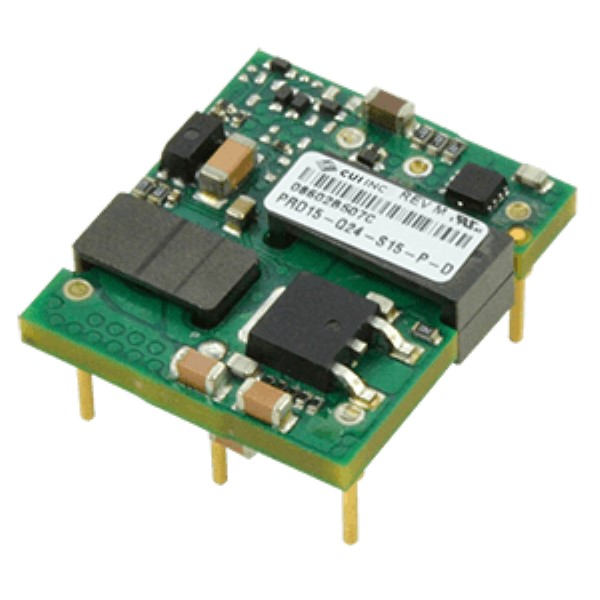

CUI Inc PRD15Q24S12PD Isolated DC-DC Converter
The CUI Inc PRD15 series DC-DC converters provide a reliable and efficient power solution for a variety of industrial applications. These converters offer up to 15W of isolated output power in a compact 1” x 1” package, with a wide 4:1 input voltage range and low ripple and noise. Key features include over voltage, over current, short circuit, and over temperature protections, remote on/off control, and output trim. They are suitable for applications requiring a stable and isolated power supply in a space-constrained environment.
CUI Inc PRD15Q24S12PD Isolated DC-DC Converter Specifications:
- input_voltage_range: 9~36 Vdc
- output_voltage: 12 Vdc
- output_current_min: 0.13 A
- output_current_max: 1.3 A
- output_power_max: 15.6 W
- ripple_noise_max: 150 mVp-p
- efficiency_typ: 84.5%
- operating_input_voltage_24vdc: 9 Vdc
- operating_input_voltage_48vdc: 18 Vdc
- start_up_voltage_24vdc: 8.8 Vdc
- start_up_voltage_48vdc: 16.7 Vdc
- under_voltage_shutdown_prd15q24s3: 8.6 Vdc
- under_voltage_shutdown_prd15q24s5: 8.5 Vdc
- under_voltage_shutdown_prd15q24s12: 8.4 Vdc
- under_voltage_shutdown_prd15q48s15: 16.2 Vdc
- over_voltage_protection_prd15q24s3: 4.5 Vdc
- over_voltage_protection_prd15q24s5: 5.9 Vdc
- over_voltage_protection_prd15q24s12: 14.1 Vdc
- over_voltage_protection_prd15q24s15: 19.5 Vdc
- over_voltage_protection_prd15q48s3: 3.9 Vdc
- over_voltage_protection_prd15q48s5: 5.9 Vdc
- over_voltage_protection_prd15q48s12: 15 Vdc
- over_voltage_protection_prd15q48s15: 20 Vdc
- over_current_protection_prd15q24s3: 6.0 A
- over_current_protection_prd15q24s5: 4.6 A
- over_current_protection_prd15q24s12: 2.0 A
- over_current_protection_prd15q24s15: 1.6 A
- over_current_protection_prd15q48s3: 7.2 A
- over_current_protection_prd15q48s5: 4.5 A
- over_current_protection_prd15q48s12: 1.8 A
- over_current_protection_prd15q48s15: 1.7 A
- short_circuit_protection: 0.3 A
- isolation_voltage: 2000 Vdc (24V input), 2250 Vdc (48V input)
- operating_temperature_min: -40 °C
- operating_temperature_max: 85 °C
- storage_temperature_min: -55 °C
- storage_temperature_max: 125 °C
