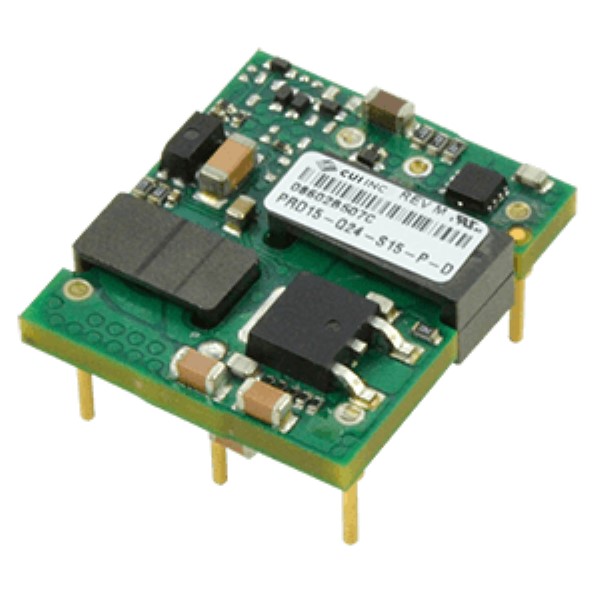

CUI Inc PRD15Q48S3PD Isolated DC-DC Converter
The CUI Inc PRD15 series DC-DC converters provide up to 15W of isolated output power in a compact 1” x 1” package. These converters offer a wide 4:1 input voltage range, low ripple and noise, and comprehensive protection features including over voltage, over current, short circuit, and over temperature protection. They are suitable for a variety of industrial applications requiring reliable and efficient power conversion, such as powering control circuits, lighting, and other electronic devices. The PRD15-Q48-S3-P-D model specifically offers a 48V input voltage and 3.3V output voltage.
CUI Inc PRD15Q48S3PD Isolated DC-DC Converter Specifications:
- input_voltage_range: 18~75 Vdc
- output_voltage: 3.3 Vdc
- output_current_min: 0.5 A
- output_current_max: 5 A
- output_power_max: 16.5 W
- ripple_noise: 90 mVp-p
- efficiency_typ: 88%
- operating_input_voltage_24vdc: 9~36 Vdc
- operating_input_voltage_48vdc: 18~75 Vdc
- start_up_voltage_24vdc: 8.8 Vdc
- start_up_voltage_48vdc: 16.7 Vdc
- under_voltage_shutdown_prd15q24s3: 8.6 Vdc
- under_voltage_shutdown_prd15q24s5: 8.5 Vdc
- under_voltage_shutdown_prd15q24s12_s15: 8.4 Vdc
- under_voltage_shutdown_prd15q48s15_other: 16.2/15.6 Vdc
- over_voltage_protection_prd15q24s3: 4.5 Vdc
- over_voltage_protection_prd15q24s5: 5.9 Vdc
- over_voltage_protection_prd15q24s12_s15: 14.1/19.5 Vdc
- over_voltage_protection_prd15q48s3: 3.9 Vdc
- over_voltage_protection_prd15q48s5: 5.9 Vdc
- over_voltage_protection_prd15q48s12_s15: 15/20 Vdc
- over_current_protection_prd15q24s3: 6.0 A
- over_current_protection_prd15q24s5: 4.6 A
- over_current_protection_prd15q24s12: 2.0 A
- over_current_protection_prd15q24s15: 1.6 A
- over_current_protection_prd15q48s3: 7.2 A
- over_current_protection_prd15q48s5: 4.5 A
- over_current_protection_prd15q48s12: 1.8 A
- over_current_protection_prd15q48s15: 1.7 A
- isolation_voltage: 2000 Vdc (24V input), 2250 Vdc (48V input)
- operating_temperature: -40~85 °C
- storage_temperature: -55~125 °C
