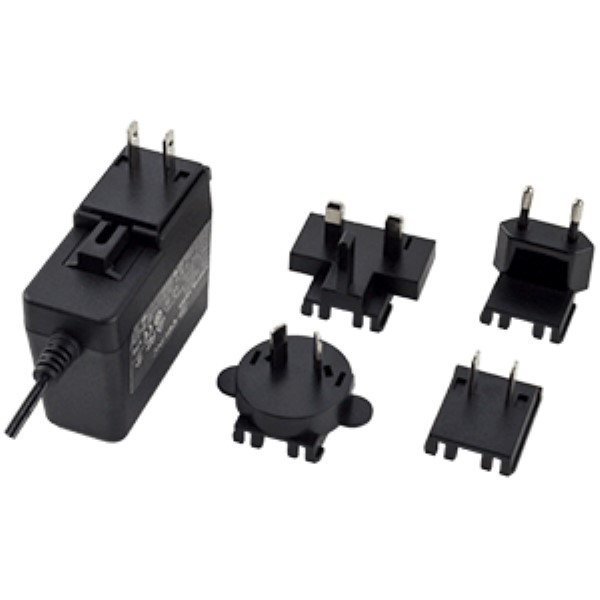

CUI Inc SMI3624KP5 AC-DC Power Supply
The CUI Inc SMI36 series AC-DC power supply delivers up to 36W of continuous power with a universal input voltage range and high efficiency. It meets DoE Level VI and CoC Tier 2 standards, offering energy-efficient performance. Key features include interchangeable AC blades for global use, comprehensive protection mechanisms, and compliance with industry safety certifications. This power supply is suitable for a wide range of industrial applications requiring a reliable and efficient power source.
CUI Inc SMI3624KP5 AC-DC Power Supply Specifications:
- continuous power: 36 W
- efficiency level2: 89.4%
- no load power consumption: 0.07 W
- input voltage range: 90 ~ 264 Vac
- input frequency range: 47 ~ 63 Hz
- output voltage: 24 Vdc
- output current: 1.5 A
- output power: 36 W
- ripple and noise: 240 mVp-p
- over voltage protection: 180 %
- over current protection: 170 %
- isolation voltage: 3,000 Vac
- isolation resistance: 10 MΩ
- safety approvals: UL/cUL, RCM, CCC, PSE, UKCA
- EMI/EMC: FCC Part 15B Class B, CE
- MTBF: 300,000 hours
- operating temperature: 0 ~ 40 °C
- storage temperature: -20 ~ 80 °C
- dimensions: 79 x 35 x 66 mm
- weight: 160 g
- plug polarity: Center Positive
- plug code: Choose from options
- plug angle: Straight or Right Angle
Buy the SMI36-24-K-P5 CUI Inc AC-DC Power Supply | myMectronic
Purchase the CUI Inc SMI36-24-K-P5 AC-DC Power Supply securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy CUI Inc SMI3624KP5?
You can click on the BUY or RFQ button to purchase SMI3624KP5 from an authorized CUI Inc distributor.
How do I troubleshoot issues or seek technical support for part SMI3624KP5?
You can download the SMI3624KP5 datasheet or visit the CUI Inc website for support.
Who is the manufacturer of SMI3624KP5?
CUI Inc
