CUI Inc SMI365KP6 AC-DC Power Supply

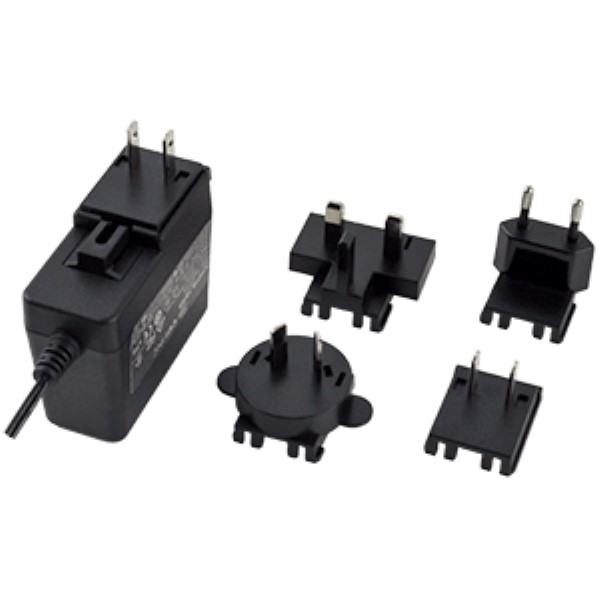

The CUI Inc SMI36 series AC-DC power supply delivers a reliable and efficient power solution for a wide range of applications. With up to 36W of continuous power and DoE Level VI compliance, it minimizes energy consumption while maintaining performance. The universal input voltage range and interchangeable AC blades provide flexibility for global deployments. Safety certifications and robust protection features ensure safe and dependable operation in various industrial and commercial environments. The compact design and multiple output voltage options make it suitable for diverse applications.
CUI Inc SMI365KP6 AC-DC Power Supply Specifications:
- continuous power: 36 W
- efficiency level2: 85.2%
- no load power consumption: 0.06 W
- input voltage range: 90 ~ 264 Vac
- input frequency range: 47 ~ 63 Hz
- output voltage: 5 Vdc
- output current: 5.0 A
- output power: 25 W
- ripple and noise: 80 mVp-p
- over voltage protection: 180 %
- over current protection: 170 %
- isolation voltage: 3,000 Vac
- isolation resistance: 10 MΩ
- safety approvals: UL/cUL, RCM, CCC, PSE, UKCA
- EMI/EMC: FCC Part 15B Class B, CE
- MTBF: 300,000 hours
- operating temperature: 0 ~ 40 °C
- storage temperature: -20 ~ 80 °C
- operating humidity: 20 ~ 80 %
- storage humidity: 10 ~ 90 %
- dimensions: 79 x 35 x 66 mm
- weight: 160 g
Buy the SMI36-5-K-P6 CUI Inc AC-DC Power Supply | myMectronic
Purchase the CUI Inc SMI36-5-K-P6 AC-DC Power Supply securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy CUI Inc SMI365KP6?
You can click on the BUY or RFQ button to purchase SMI365KP6 from an authorized CUI Inc distributor.
How do I troubleshoot issues or seek technical support for part SMI365KP6?
You can download the SMI365KP6 datasheet or visit the CUI Inc website for support.
Who is the manufacturer of SMI365KP6?
CUI Inc
