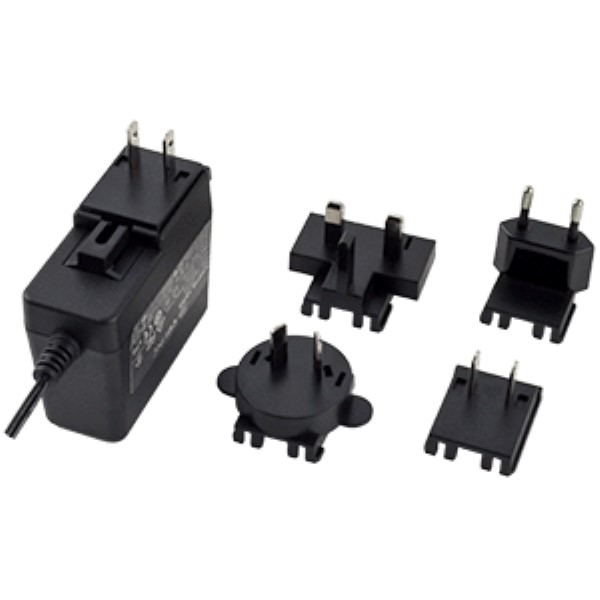

CUI Inc SMI369KP5 AC-DC Power Supply
The CUI Inc SMI36-9-K-P5 is a compact and efficient AC-DC power supply designed to deliver reliable power in a variety of industrial applications. With a power output of 30W and a wide input voltage range (90-264Vac), this power supply offers versatility and global compatibility. It meets DoE Level VI efficiency standards and incorporates essential protection features such as over voltage, over current, and short circuit protection. Safety approvals include UL/cUL, RCM, CCC, and PSE, ensuring compliance with industry standards. The SMI36 series is ideal for powering devices in applications such as industrial automation, LED lighting, and consumer electronics.
CUI Inc SMI369KP5 AC-DC Power Supply Specifications:
- continuous power: 36 W
- efficiency level2: 88.2%
- no load power consumption: 0.07 W
- input voltage range: 90 ~ 264 Vac
- input frequency range: 47 ~ 63 Hz
- output voltage: 9 Vdc
- output current: 3.34 A
- output power: 30 W
- ripple and noise: 90 mVp-p
- over voltage protection: 180 %
- over current protection: 170 %
- isolation voltage: 3,000 Vac
- isolation resistance: 10 MΩ
- safety approvals: UL/cUL, RCM, CCC, PSE, UKCA
- EMI/EMC: FCC Part 15B Class B, CE
- MTBF: 300,000 hours
- operating temperature: 0 ~ 40 °C
- storage temperature: -20 ~ 80 °C
- operating humidity: 20 ~ 80 %
- storage humidity: 10 ~ 90 %
- dimensions: 79 x 35 x 66 mm
- weight: 160 g
