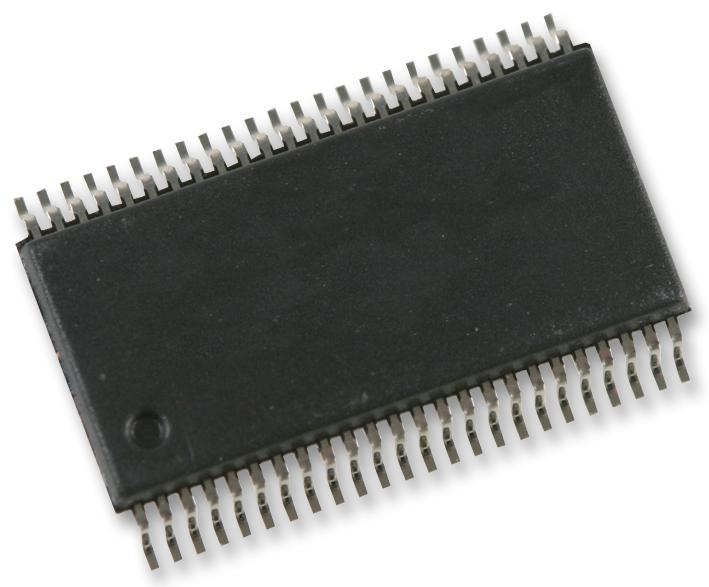

CYPRESS - INFINEON TECHNOLOGIES CY8C9540A24PVXI I/O Expander
This device is a high-demand multi-port I/O expander with integrated EEPROM and PWM outputs, supporting flexible configuration for embedded control systems. It features multiple GPIO ports and configurable PWM channels, with extendable soft addressing for easy integration into various systems. The device includes internal EEPROM for storing default port and PWM settings, which are loaded on power-up. Its robust design allows application in automation, diagnostics, and smart device control, with detailed register maps and versatile drive modes, ensuring reliable operation in industrial and consumer electronics.
CYPRESS - INFINEON TECHNOLOGIES CY8C9540A24PVXI I/O Expander Specifications:
- Package: 48-Pin SSOP (300 Mil)
- Operating Voltage: 3.0 V to 5.25 V
- Temperature Range: -40°C to +85°C
- EEPROM Size: 28 Kbyte
- GPIO Ports: Up to 8 ports, 8-8-4 pins
- PWM Channels: 8 channels in CY8C9540A
- PWM Clock Sources: 32 kHz, 24 MHz, 1.5 MHz, 93.75 kHz, 367.6 Hz, PWM output
- Maximum I/O pin current: 25 mA sink, 50 mA source
- Power On Reset: Yes
- EEPROM Write Endurance: 10,000 cycles per block
- Device Addressing: Extendable soft addressing with up to 128 device addresses
- Drive Modes: Pull-up, pull-down, open drain, strong drive, high impedance
- Interrupt: Active high, configurable mask, external reset capable
- Solder Reflow Peak Temperature: 260°C for 30 seconds
- Thermal Impedance: 69°C/W for 48-pin SSOP
- Packaging: Tape and Reel options available
Buy the Buy Cypress I/O Expander Part Number CY8C9540A24PVXI Online
Purchase Cypress CY8C9540A24PVXI online today and enhance your embedded system with versatile GPIO ports, onboard EEPROM for default settings, and multiple PWM channels. Designed for industrial control, automation, and diagnostics, this high-performance device features extendable soft addressing, robust drive modes, and reliable reset options. Easy to integrate with detailed register maps and PCB options, ensuring long-lasting operation and flexibility. Get yours now for streamlined control and exceptional reliability in your projects.
Get Cypress CY8C9540A24PVXI today—powerful I/O expansion with EEPROM and PWM, designed for reliable control in industrial and embedded systems.
Frequently Asked Questions
Where can I buy CYPRESS - INFINEON TECHNOLOGIES CY8C9540A24PVXI?
You can click on the BUY or RFQ button to purchase CY8C9540A24PVXI from an authorized CYPRESS - INFINEON TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part CY8C9540A24PVXI?
You can download the CY8C9540A24PVXI datasheet or visit the CYPRESS - INFINEON TECHNOLOGIES website for support.
Who is the manufacturer of CY8C9540A24PVXI?
CYPRESS - INFINEON TECHNOLOGIES
