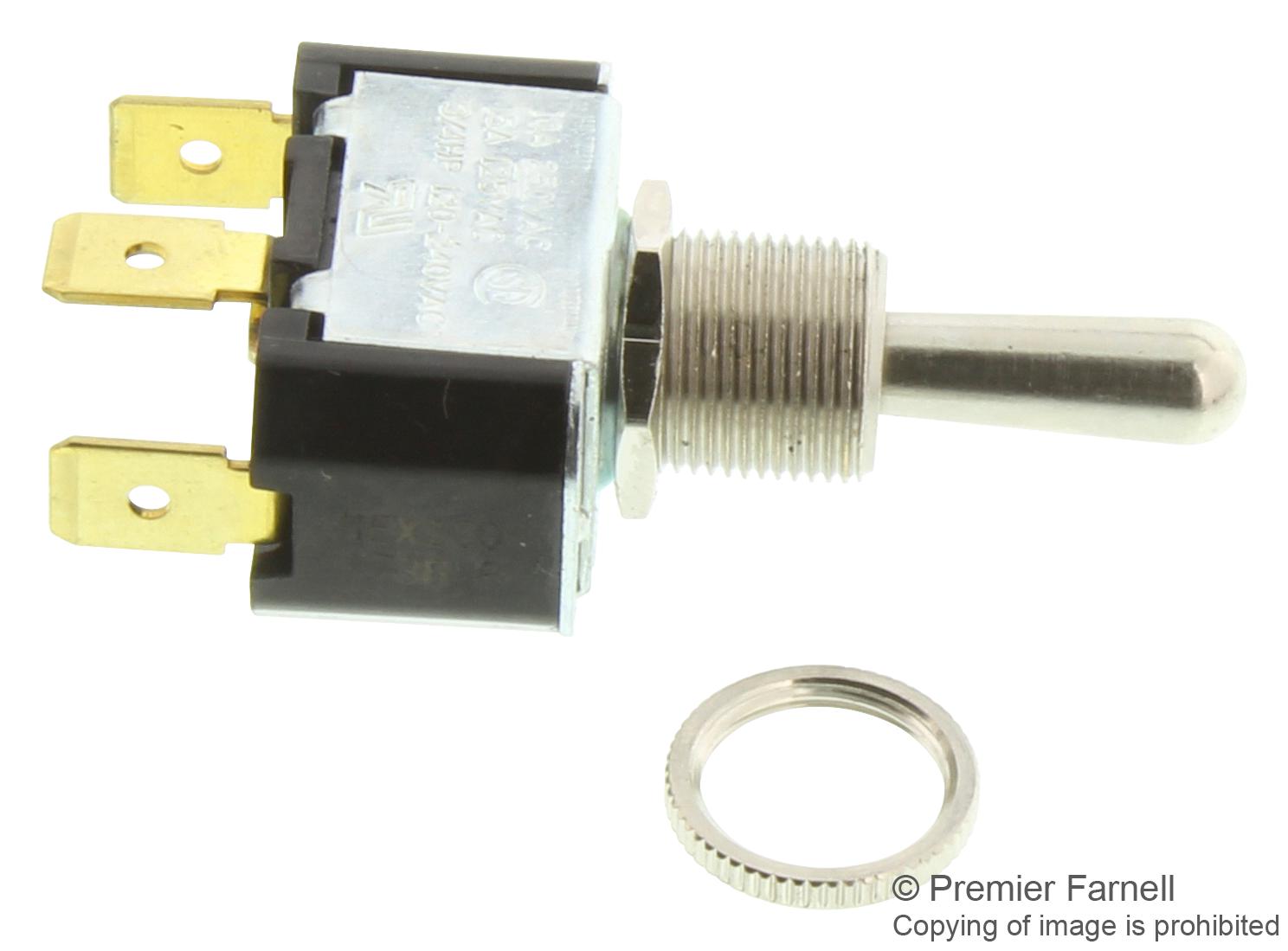

Carling Technologies 6FC5373TABS Toggle Switch
The toggle switch features a versatile design suitable for various applications, rated up to 20A 277VAC. It offers multiple actuator styles, bushing sizes, and termination options, including solder lug and screw terminals. Suitable for low voltage DC use, it provides reliable performance with a mechanical life of 100,000 cycles, dielectric strength of 1000V, and operating temperature range from 0°F to 150°F. Ideal for industrial, marine, and control systems requiring durable, high-quality switching components.
Carling Technologies 6FC5373TABS Toggle Switch Specifications:
- Electrical Ratings: 20A 277VAC, 15A 125VAC, 3/4 HP 125-250VAC
- Dielectric Strength: 1000V between live and metal parts
- Mechanical Life: 100,000 cycles
- Electrical Life: 50,000 cycles (maintained), 25,000 cycles (momentary)
- Operating Temperature: 0°F to 150°F (-17.8°C to +65.6°C)
- Actuator Styles: On-None-Off, On-None-On, On-Off-On, etc.
- Terminal Types: Solder lug, screw terminals, sealed and unsealed options
- Bushing Lengths: 0.465 to 0.687 inches
- Mounting Hole Diameter: Approximately 0.500 inches
- Dimensions: Switch length and actuator vary with model, typical mounting hole size 0.500 inches
Buy the Carling Series F-Series Toggle Switch: 6FC5373TABS
Purchase the Carling Series F-Series Toggle Switch online today and benefit from its durable construction, high current ratings, and versatile terminal options. Designed to handle up to 20A at 277VAC, this switch offers long-lasting mechanical and electrical life, with dielectric strength of 1000V for safety. Its broad operating temperature range from 0°F to 150°F makes it suitable for industrial, marine, and control systems. Easily installed with multiple termination options, ensuring reliable switching for a variety of applications. Order now for fast delivery and trusted performance.
Buy Carling Series F-Series toggle switch with reliable contacts and various actuator options now and experience unmatched durability and control performance.
Frequently Asked Questions
Where can I buy Carling Technologies 6FC5373TABS?
You can click on the BUY or RFQ button to purchase 6FC5373TABS from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part 6FC5373TABS?
You can download the 6FC5373TABS datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of 6FC5373TABS?
Carling Technologies
