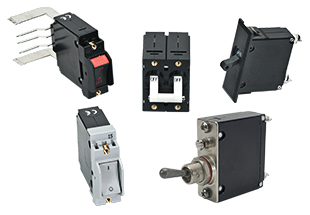

Carling Technologies AA2X0015681D1C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor. These breakers are ideal for a wide range of applications, including marine, telecom, renewable energy, and industrial automation. They offer versatility with configurations from one to six poles, rated up to 50 amps, 277VAC/80VDC, and a maximum interrupting capacity of 7,500 amps. The Visi Rocker® and recessed paddle actuators provide clean front panel designs, while the metal toggle configuration is suitable for harsh environments. A-Series circuit breakers trip on overload, even when the actuator is forcibly held in the ON position, ensuring safety and reliability.
Carling Technologies AA2X0015681D1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Weight: Approximately 65 grams/pole (Approximately 2.32 ounces/pole)
- Shock: Withstands 100 Gs, 6ms, sawtooth while carrying rated current
- Vibration: Withstands 0.060” excursion from 10-55 Hz, and 10 Gs 55-500 Hz
- Moisture Resistance: Method 106D; ten 24-hour cycles @ + 25°C to +65°C, 80-98% RH
- Salt Spray: Method 101, Condition A (90-95% RH @ 5% NaCl Solution, 96 hrs)
- Thermal Shock: Method 107D, Condition A (Five cycles @ -55°C to +25°C to +85°C to +25°C)
