Carling Technologies AA2X0091002D1C Hydraulic-Magnetic Circuit Breaker

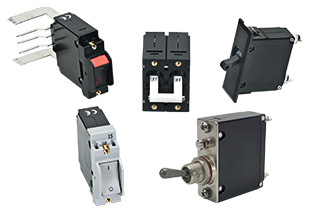

CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers provide precise operation in a compact design, making them ideal for a wide range of applications including marine, telecom, renewable energy, and industrial automation. These breakers are available in configurations from one to six poles, rated up to 50 amps, 277VAC/80VDC, and feature a maximum interrupting capacity of 7,500 amps. The Visi Rocker® and recessed paddle actuators are designed for clean front panel integration, while the metal toggle configuration is suitable for harsh environments. A-Series breakers trip on overload and include features like trip-free operation and auxiliary switch options for enhanced functionality and monitoring.
Carling Technologies AA2X0091002D1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute between all electrically isolated terminals
- Shock: Withstands 100 Gs, 6ms
- Vibration: Withstands 0.060” excursion from 10-55 Hz
- Moisture Resistance: Method 106D; ten 24-hour cycles @ + 25°C to +65°C, 80-98% RH
- Salt Spray: Method 101, Condition A
- Thermal Shock: Method 107D, Condition A
Buy the AA2-X0-09-100-2D1-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AA2-X0-09-100-2D1-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
