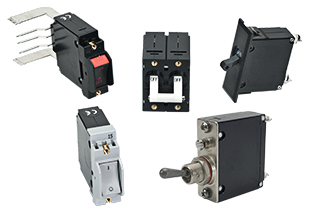

Carling Technologies AA2X0162844214 Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers provide precise operation in a compact design, making them ideal for a wide range of applications including marine, telecom, renewable energy, and industrial automation. These breakers are available in one to six pole configurations, rated up to 50 amps, 277VAC/80VDC, and feature a maximum interrupting capacity of 7,500 amps. The Visi Rocker® and recessed paddle actuators are designed for clean, front panel designs, while the metal toggle configuration is suitable for harsh environments. The A-Series circuit breakers trip on overload and include features like trip-free operation and auxiliary switch options for enhanced functionality.
Carling Technologies AA2X0162844214 Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Poles: 1-6
- Amps: Up to 50
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Weight: Approximately 65 grams/pole (Approximately 2.32 ounces/pole)
- Resistance Per Pole Values: Values Based on Series Trip Circuit Breaker
- Current Tolerance (%): {'100': '0.10 - 5.0', '10': '5.1 - 20.0', '20.1 - 50.0': '35'}
