Carling Technologies AA2X0162854214 Hydraulic-Magnetic Circuit Breaker

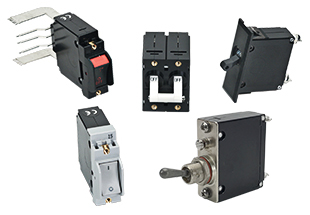

CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor. These breakers are ideal for a wide range of applications, including marine, telecom, renewable energy, and industrial automation. They offer versatility with configurations from one to six poles, rated up to 50 amps, 277VAC/80VDC, and a maximum interrupting capacity of 7,500 amps. The Visi Rocker® and recessed paddle actuators provide clean front panel designs, while the metal toggle configuration is suitable for harsh environments. A-Series circuit breakers trip on overload, even when the actuator is forcibly held in the ON position.
Carling Technologies AA2X0162854214 Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute between all electrically isolated terminals
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
Buy the AA2-X0-16-285-421-4 CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AA2-X0-16-285-421-4 Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AA2X0162854214?
You can click on the BUY or RFQ button to purchase AA2X0162854214 from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AA2X0162854214?
You can download the AA2X0162854214 datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AA2X0162854214?
Carling Technologies
