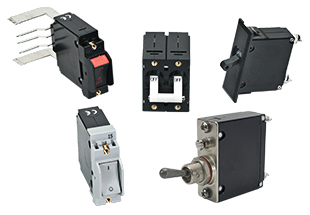

Carling Technologies AB2X0006689D1C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor. These breakers are suitable for a wide range of applications, including marine, telecom, renewable energy, and industrial automation. They feature Visi Rocker® and recessed paddle actuators for clean front panel designs, and are available in configurations from one to six poles, rated up to 50 amps and 277VAC/80VDC. The A-Series provides overload protection and incorporates features like trip-free operation and auxiliary switch options for enhanced functionality.
Carling Technologies AB2X0006689D1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Max Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Poles: 1-6
- Amps: Up to 50
- Endurance: 10,000 ON-OFF operations
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Weight: Approximately 65 grams/pole
- Resistance per Pole: 1000
- Current Tolerance (%): {'100': '0.10 - 5.0', '10': '5.1 - 20.0', '20.1': '20.1 - 50.0'}
Buy the AB2-X0-00-668-9D1-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AB2-X0-00-668-9D1-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AB2X0006689D1C?
You can click on the BUY or RFQ button to purchase AB2X0006689D1C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AB2X0006689D1C?
You can download the AB2X0006689D1C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AB2X0006689D1C?
Carling Technologies
