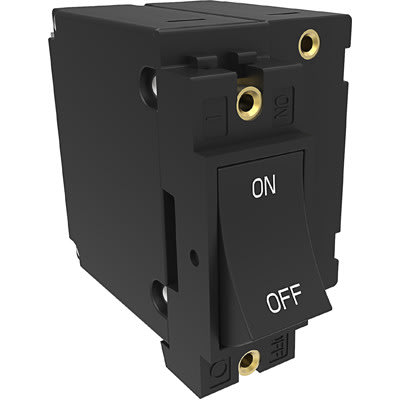

Carling Technologies AJ2B034625223D Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact size, suitable for both general purpose and full amp load applications. Featuring Visi Rocker® and recessed paddle actuators for clean front panel designs, or a metal toggle configuration for harsh environments, these breakers offer versatility and reliability. Available in configurations from one to six poles, they are rated up to 50 amps, 277VAC/80VDC, with a maximum short-circuit current (IC) of 7,500 amps. Typical applications include marine, telecom, renewable energy, generators, welders, military, industrial automation, commercial food, and medical equipment.
Carling Technologies AJ2B034625223D Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Number of Poles: 1 - 6
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute between all electrically isolated terminals
- Shock: Withstands 100 Gs, 6ms, sawtooth while carrying rated current
- Vibration: Withstands 0.060” excursion from 10-55 Hz, and 10 Gs 55-500 Hz
- Moisture Resistance: Method 106D; ten 24-hour cycles @ + 25°C to +65°C, 80-98% RH
- Salt Spray: Method 101, Condition A (90-95% RH @ 5% NaCl Solution, 96 hrs)
- Thermal Shock: Method 107D, Condition A (Five cycles @ -55°C to +25°C to +85°C to +25°C)
Buy the AJ2-B0-34-625-223-D CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AJ2-B0-34-625-223-D Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AJ2B034625223D?
You can click on the BUY or RFQ button to purchase AJ2B034625223D from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AJ2B034625223D?
You can download the AJ2B034625223D datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AJ2B034625223D?
Carling Technologies
