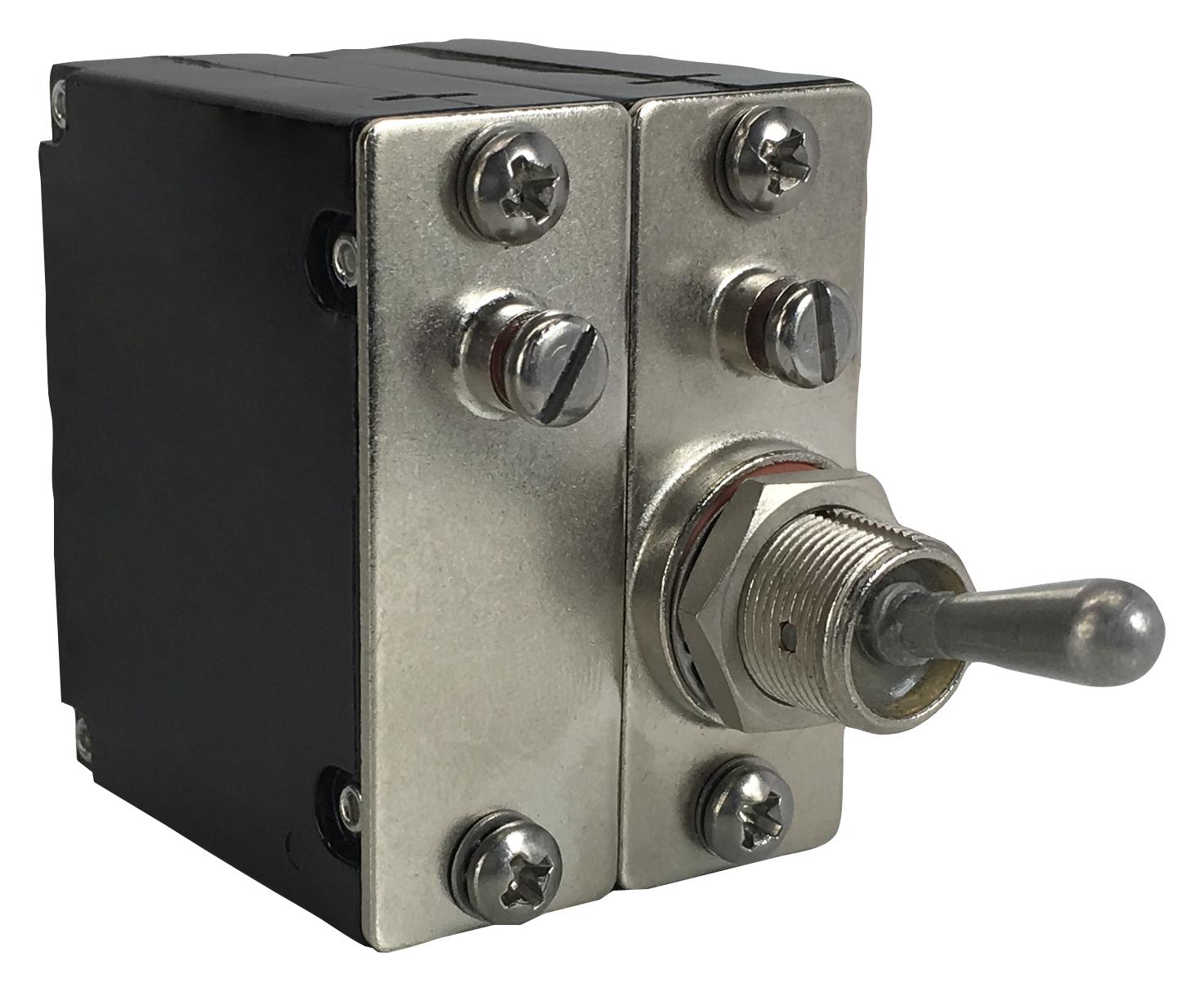

Carling Technologies AM2B034425201C Circuit Breaker
The circuit breaker features reliable performance with various actuator styles including push-on, rocker, and mid-trip handles suitable for diverse applications. Certified for UL, CSA, VDE, and TUV standards, it supports ratings up to 50 amps with short circuit capacities up to 7500 amps. Designed for OEM, marine, renewable energy, and industrial markets, this breaker offers compact size, high durability, and optional sealing for harsh environments. Its versatile configuration includes single, multiple poles, and auxiliary/alarm switches, making it ideal for control panels, safety systems, and power distribution setups.
Carling Technologies AM2B034425201C Circuit Breaker Specifications:
- Poles: 1-6 poles; ratings from 0.02 to 50 amps
- Maximum Voltage: 277VAC, 80VDC
- Dielectric Strength: UL/CSA - 1500V 60 Hz 1 min between isolated terminals
- Insulation Resistance: Minimum 100 Megohms at 500 VDC
- Mounting: Front panel snap-in or shroud, various sizes including 0.744 and 0.96 inch wide bezels
- Actuator styles: Push-On, Rocer, Mid-Trip, Push-to-Reset, with optional sealing and visual indicators
- Certification: UL Recognized, CSA Accepted, VDE Certified, TUV Certified
- Operating Temperature: -40°C to +85°C
- Shock & Vibration: Withstand 100 Gs, 6ms sawtooth; 10-55Hz ±0.060-inch excursion
- Electrical Life: 10,000 cycles at rated current and voltage
- Physical: Approximately 65 grams per pole; Durable metal housing with sealed toggle options for harsh environments
Buy the Carling 034425201C – Reliable Circuit Breaker for Industrial Applications
Purchase the Carling circuit breaker 034425201C online today and ensure your power systems are protected with high-quality, certified, and versatile circuit protection. Its compact design, multiple actuator options, and robust certifications make it perfect for OEM, marine, renewable energy, and industrial applications. Whether you need a single, multi-pole, or auxiliary switch configuration, this breaker provides a reliable solution for voltage ratings up to 277VAC and DC, with excellent durability and safety features. Order now and benefit from fast delivery and trusted performance!
Buy Carling 034425201C now and experience unmatched reliability and performance in your industrial, marine, and energy control systems.
Frequently Asked Questions
Where can I buy Carling Technologies AM2B034425201C?
You can click on the BUY or RFQ button to purchase AM2B034425201C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AM2B034425201C?
You can download the AM2B034425201C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AM2B034425201C?
Carling Technologies
