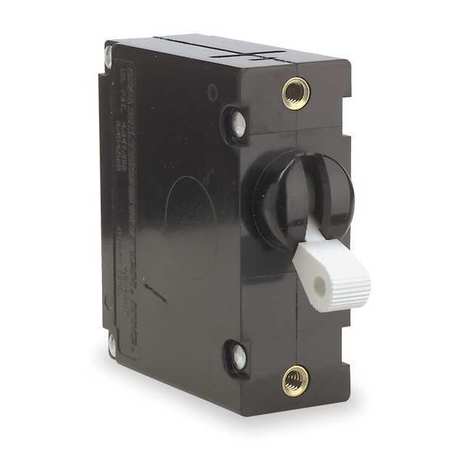

Carling Technologies BA1B036610111D Hydraulic-Magnetic Circuit Breaker
Carling Technologies' B-Series hydraulic-magnetic circuit breakers provide a robust and versatile solution for a wide range of applications. These breakers are designed with global regulatory safety approvals in mind, ensuring compliance with international standards. The B-Series offers flexibility with configurable options for one to six poles, ratings up to 50 amps, and compatibility with 277VAC or 80VDC. Typical applications include power supplies, medical equipment, generators, and industrial automation systems. The breakers feature a trip-free mechanism and a positive handle indication for enhanced safety and reliability.
Carling Technologies BA1B036610111D Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage: 277VAC, 80VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 AMPS - 250VAC, 1.0A 65 VDC or 0.5A 80 VDC, 0.1 Amps - 125VAC (with gold contacts)
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA-1500 V 50/60 Hz for one minute between all electrically isolated terminals
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All B-Series Circuit Breakers will trip on overload, even when Handle is forcibly held in the ON position
- Weight: Approximately 65 grams/pole
Buy the BA1-B0-36-610-111-D CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the Carling Technologies BA1-B0-36-610-111-D Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
