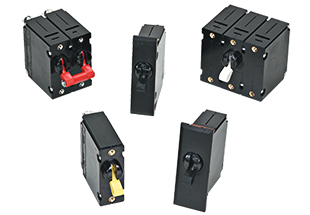

Carling Technologies BA3X007524211D Hydraulic-Magnetic Circuit Breaker
Carling Technologies' B-Series hydraulic-magnetic circuit breakers provide a robust solution for a wide range of applications, from power supplies and medical equipment to industrial automation and marine environments. These versatile breakers offer global regulatory safety approvals, a wide choice of actuator styles, time delays, terminals, and imprinting options. Configurable in one to six poles, they are rated up to 50 amps and 277VAC or 80VDC, with a maximum interrupting capacity of 7,500 amps. The B-Series ensures reliable circuit protection and is designed to meet the demands of diverse industrial settings.
Carling Technologies BA3X007524211D Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage: 277VAC, 80VDC
- Poles: 1-6
- Amps: Up to 50
- Max IC: 7,500 amps
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 20.0, 25.0, 30.0, 35.0, 40.0, 50.0 amps
- Auxiliary Switch Rating: SPDT; 10.1 AMPS - 250VAC, 1.0A 65 VDC or 0.5A 80 VDC, 0.1 Amps - 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA-1500 V 50/60 Hz for one minute between all electrically isolated terminals
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All B-Series Circuit Breakers will trip on overload
- Trip Indication: The operating Handle moves positively to the OFF position
- Weight: Approximately 65 grams/pole
- Standard Colors: Housing- Black; Actuator - See Ordering Scheme
- Shock: Withstands 100 Gs, 6ms
- Vibration: Withstands 0.060” excursion from 10-55 Hz
- Moisture Resistance: Method 106D
- Salt Spray: Method 101, Condition A
- Thermal Shock: Method 107D
Buy the BA3-X0-07-524-211-D CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the Carling Technologies BA3-X0-07-524-211-D Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies BA3X007524211D?
You can click on the BUY or RFQ button to purchase BA3X007524211D from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part BA3X007524211D?
You can download the BA3X007524211D datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of BA3X007524211D?
Carling Technologies
