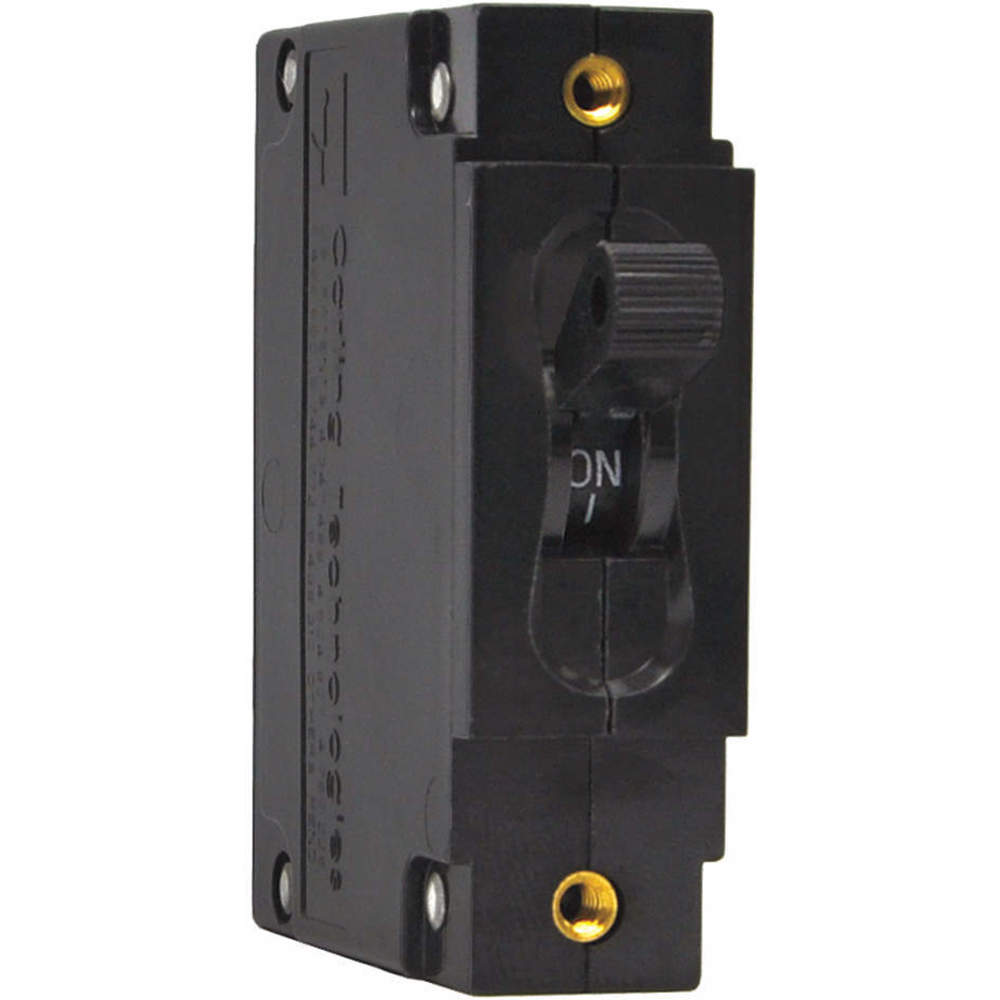

Carling Technologies CA1B034410121C Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker is a compact and robust solution for high amperage and voltage applications. Designed with a unique arc chute, it provides higher interrupting capacities up to 10,000 amps. Available in configurations from one to six poles and rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC, the C-Series is suitable for a wide range of industrial applications including marine, datacom/telecom, renewable energy, military, commercial food, and medical equipment. It complies with MIL-PRF-55629 and MIL-STD-202 standards.
Carling Technologies CA1B034410121C Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage AC: 480 WYE/277 VAC, 50/60 Hz
- Voltage DC: 125 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute between all electrically isolated terminals
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload, even when actuator is forcibly held in the ON position
- Physical Poles: 1-6 poles ≤ 50A; 1-4 poles @ 51-70A; 1-2 poles 71-100A
- Weight: Approx.112 grams/pole ( 3.95 oz)
Buy the CA1-B0-34-410-121-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA1-B0-34-410-121-C Hydraulic-Magnetic Circuit Breaker securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA1B034410121C?
You can click on the BUY or RFQ button to purchase CA1B034410121C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA1B034410121C?
You can download the CA1B034410121C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA1B034410121C?
Carling Technologies
