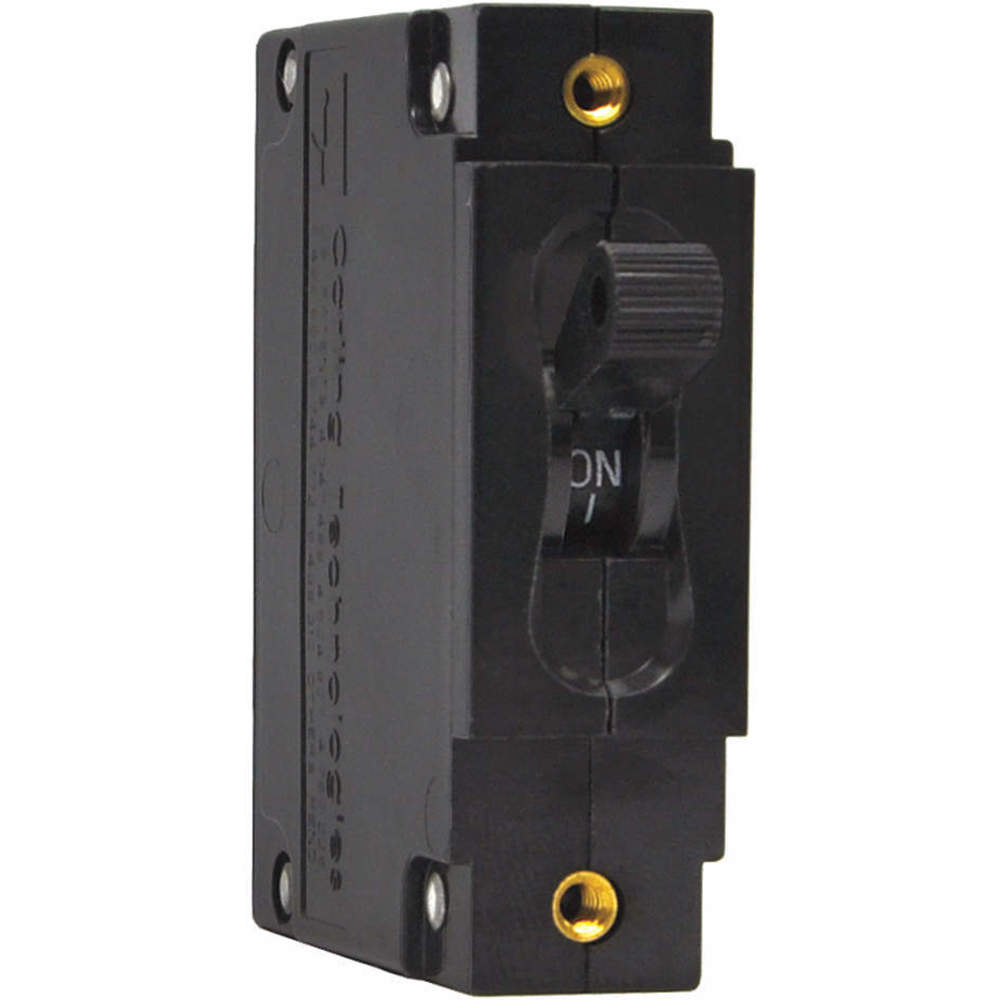

Carling Technologies CA1B034430121C Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker provides a robust and compact solution for high amperage and voltage applications. Available in configurations from one to six poles, these breakers are rated up to 100 amps and designed to handle voltages up to 480VAC/80VDC or 240VAC/125VDC. The C-Series features a unique arc chute design, enabling high interrupting capacities of up to 10,000 amps. Typical applications include marine, datacom/telecom, renewable energy, generators & welders, military, industrial automation, commercial food, and medical equipment. The breakers comply with stringent safety standards and offer a reliable solution for demanding industrial environments.
Carling Technologies CA1B034430121C Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage AC: 480 WYE/277 VAC
- Maximum Voltage DC: 80VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload
- Physical Number of Poles: 1-6 poles ≤ 50A; 1-4 poles @ 51-70A; 1-2 poles 71-100A
Buy the CA1-B0-34-430-121-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA1-B0-34-430-121-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA1B034430121C?
You can click on the BUY or RFQ button to purchase CA1B034430121C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA1B034430121C?
You can download the CA1B034430121C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA1B034430121C?
Carling Technologies
