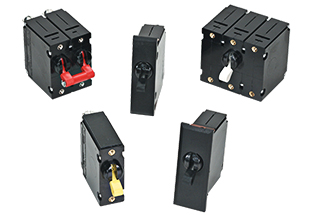

Carling Technologies CA1X012454121KG C-Series Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker offers a compact and robust solution for high amperage and voltage applications. Available in configurations from one to six poles and rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC, this circuit breaker is suitable for a wide range of industrial uses. Its unique arc chute design provides high interrupting capacities up to 10,000 amps, ensuring reliable protection. Parallel pole options extend ratings to 100-250 amps. The C-Series finds application in marine, datacom/telecom, renewable energy, military, industrial automation, commercial food, and medical equipment.
Carling Technologies CA1X012454121KG C-Series Circuit Breaker Specifications:
- Voltage: 480 WYE/277 VAC, 240 VAC, 125 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0, 100 amps
- Voltage Coils: DC - 6V, 12V; AC - 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute
- Spacing: 8mm spacing and 3750V 50/60 Hz dielectric requirements
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers trip on overload
- Operating Temperature: -40° C to +85° C
- Weight: Approx.112 grams/pole
Buy the CA1-X0-12-454-121-KG CARLING TECHNOLOGIES C-Series Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA1-X0-12-454-121-KG C-Series Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA1X012454121KG?
You can click on the BUY or RFQ button to purchase CA1X012454121KG from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA1X012454121KG?
You can download the CA1X012454121KG datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA1X012454121KG?
Carling Technologies
