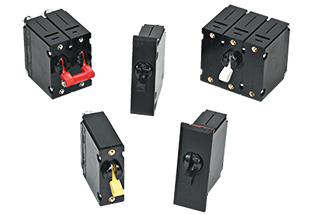

Carling Technologies CA1X016044A21MJ Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker is a compact and robust solution for high amperage and voltage applications. Designed with a unique arc chute, it provides high interrupting capacities up to 10,000 amps. Available in configurations from one to six poles and rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC, the C-Series is suitable for a wide range of industrial uses. Parallel pole options extend ratings to 100-250 amps. This circuit breaker finds application in marine, datacom/telecom, renewable energy, military, industrial automation, commercial food, and medical equipment.
Carling Technologies CA1X016044A21MJ Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage AC: 480 WYE/277 VAC
- Maximum Voltage DC: 80VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload
- Physical Number of Poles: 1-6 poles ≤ 50A; 1-4 poles @ 51-70A; 1-2 poles 71-100A
Buy the CA1-X0-16-044-A21-MJ CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA1-X0-16-044-A21-MJ Hydraulic-Magnetic Circuit Breaker securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA1X016044A21MJ?
You can click on the BUY or RFQ button to purchase CA1X016044A21MJ from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA1X016044A21MJ?
You can download the CA1X016044A21MJ datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA1X016044A21MJ?
Carling Technologies
