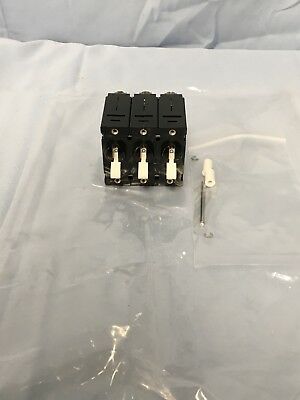

Carling Technologies CA3B02442512CC Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker delivers a compact yet robust solution for high amperage and voltage applications. Available in one to six pole configurations, it's rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC. Its unique arc chute design allows for high interrupting capacities up to 10,000 amps, making it suitable for marine, datacom/telecom, renewable energy, military, industrial automation, and commercial food/medical equipment applications. The C-Series meets stringent standards, including MIL-PRF-55629 and MIL-STD-202, ensuring reliable performance and safety.
Carling Technologies CA3B02442512CC Hydraulic-Magnetic Circuit Breaker Specifications:
- Voltage: 480 WYE/277 VAC, 240 VAC, 125 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Weight: Approx.112 grams/pole ( 3.95 oz)
Buy the CA3-B0-24-425-12C-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES CA3-B0-24-425-12C-C Hydraulic-Magnetic Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies CA3B02442512CC?
You can click on the BUY or RFQ button to purchase CA3B02442512CC from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part CA3B02442512CC?
You can download the CA3B02442512CC datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of CA3B02442512CC?
Carling Technologies
