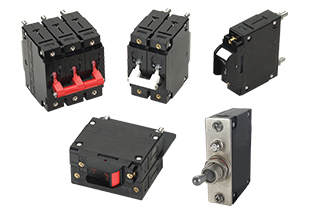

Carling Technologies CA3B034690331L Hydraulic-Magnetic Circuit Breaker
The CARLING TECHNOLOGIES C-Series hydraulic-magnetic circuit breaker is a compact and robust solution for high amperage and voltage applications. Designed with a unique arc chute, it provides higher interrupting capacities up to 10,000 amps. Available in configurations from one to six poles and rated up to 100 amps, 480VAC/80VDC or 240VAC/125VDC, the C-Series is suitable for a wide range of industrial uses. Parallel pole options extend ratings to 100-250 amps. This circuit breaker finds application in marine, datacom/telecom, renewable energy, military, industrial automation, commercial food, and medical equipment.
Carling Technologies CA3B034690331L Hydraulic-Magnetic Circuit Breaker Specifications:
- Maximum Voltage AC: 480 WYE/277 VAC
- Maximum Voltage DC: 80 VDC
- Current Ratings: 0.100, 0.250, 0.500, 0.750, 1.00, 2.50, 5.00, 7.50, 10.0, 15.0, 25.0, 30.0, 35.0, 40.0, 50.0, 60.0, 70.0, 80.0, 90.0 and 100 amps
- Standard Voltage Coils DC: 6V, 12V
- Standard Voltage Coils AC: 120V
- Auxiliary Switch Rating: SPDT; 10.1 amps-250VAC, DC 1.0A, 65 VDC, 0.5A, 80VDC, 1/4 HP, 125VAC
- Insulation Resistance: Minimum of 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA: 1960 V 50/60 Hz for one minute between all electrically isolated terminals
- Operating Temperature: -40° C to +85° C
- Endurance: 10,000 ON-OFF operations @ 6 per minute
- Trip Free: All circuit breakers will trip on overload, even when actuator is forcibly held in the ON position
- Physical Number of Poles: 1-6 poles ≤ 50A; 1-4 poles @ 51-70A; 1-2 poles 71-100A
- Standard Colors: Housing: Black
